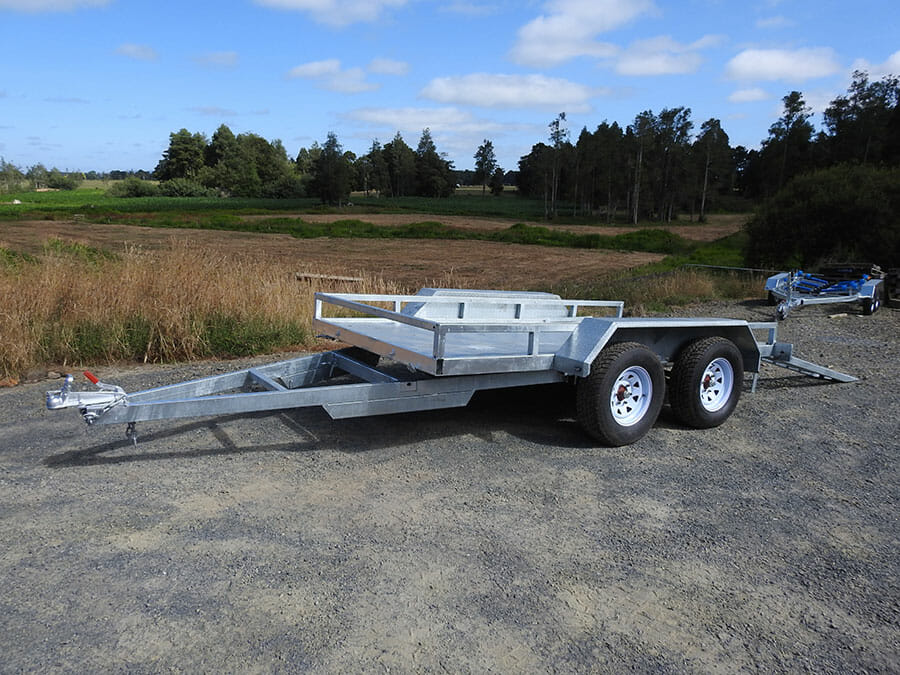

12 x 6  Digger Tandem Trailer 3500kg GVM*

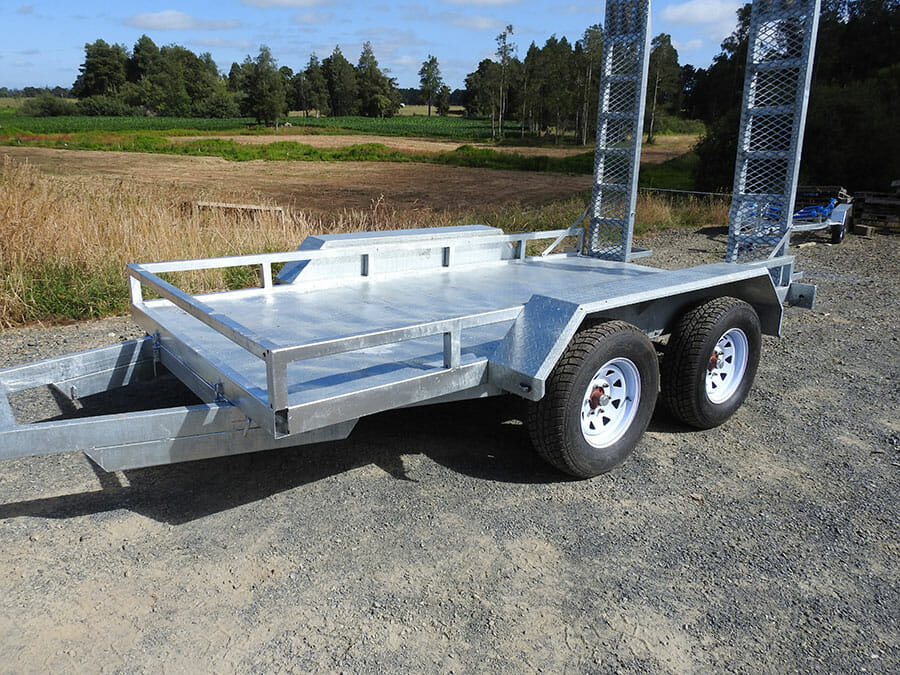

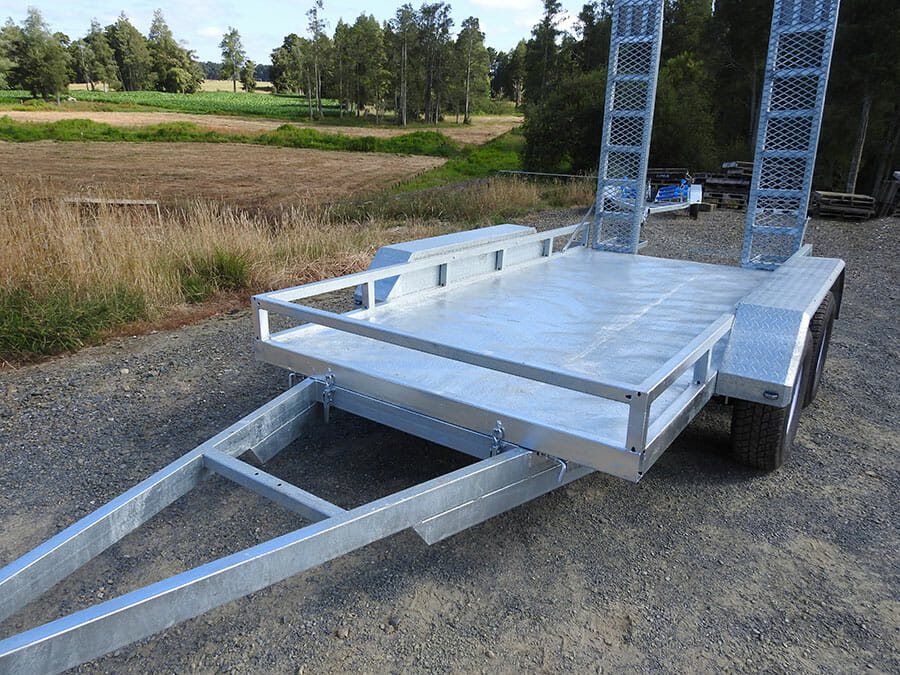

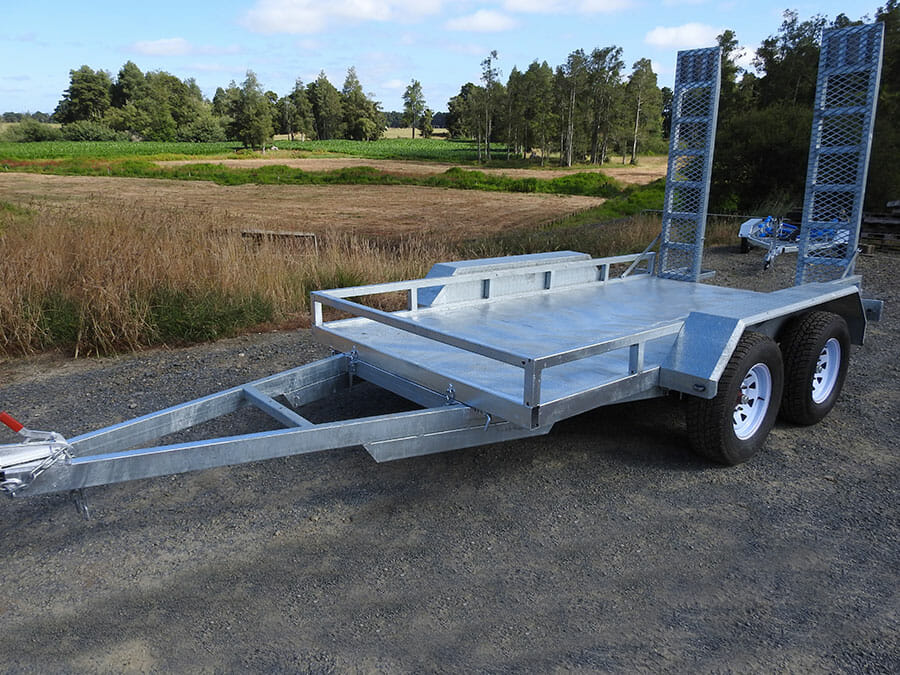

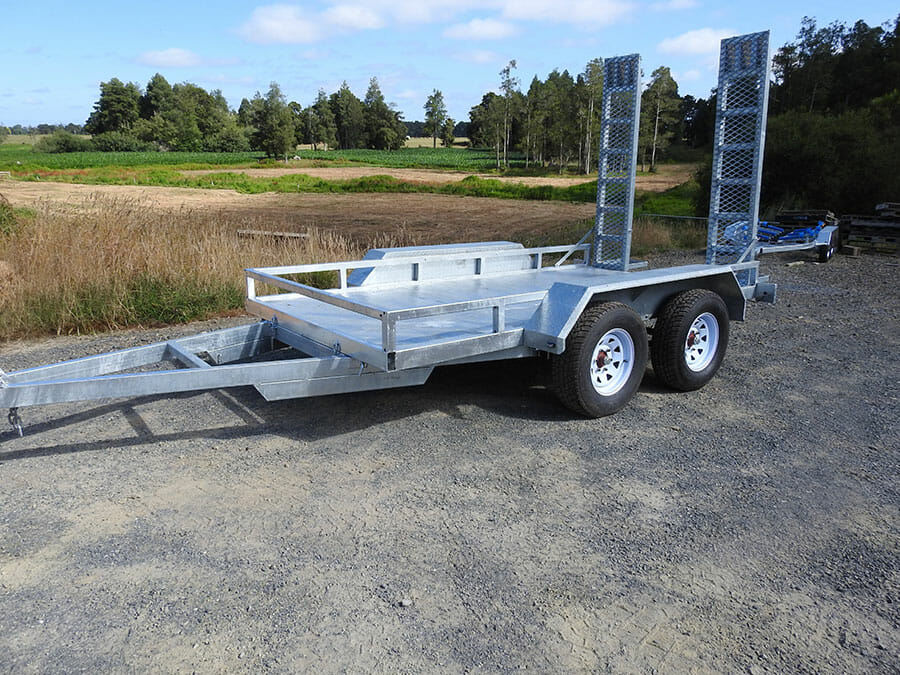

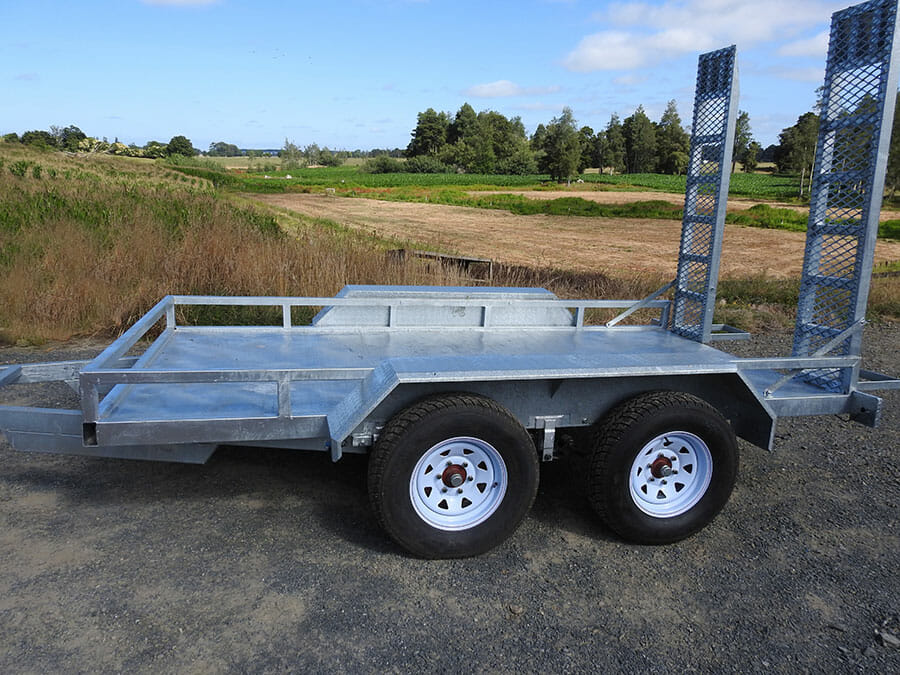

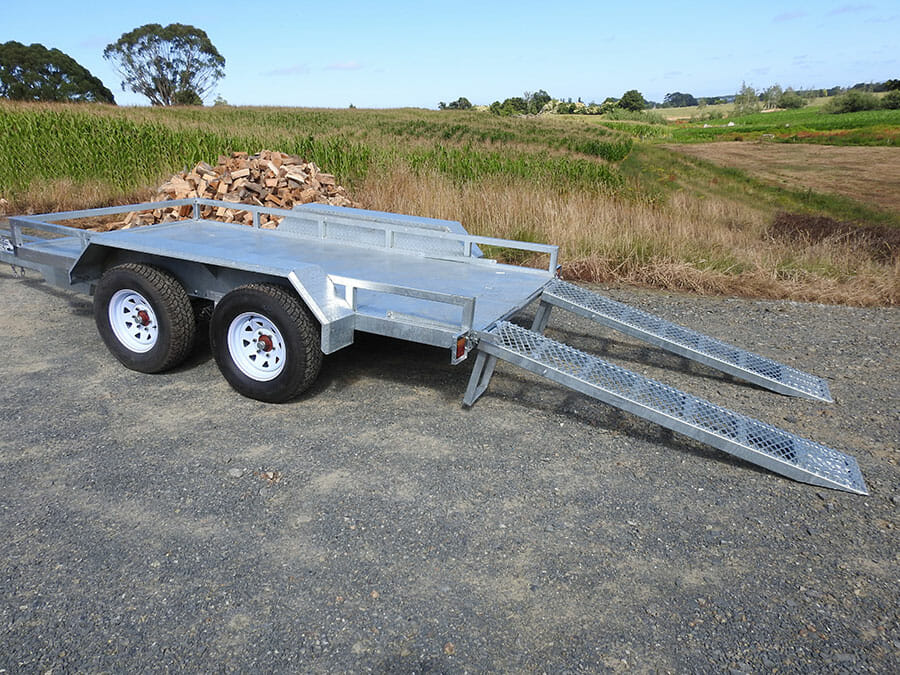

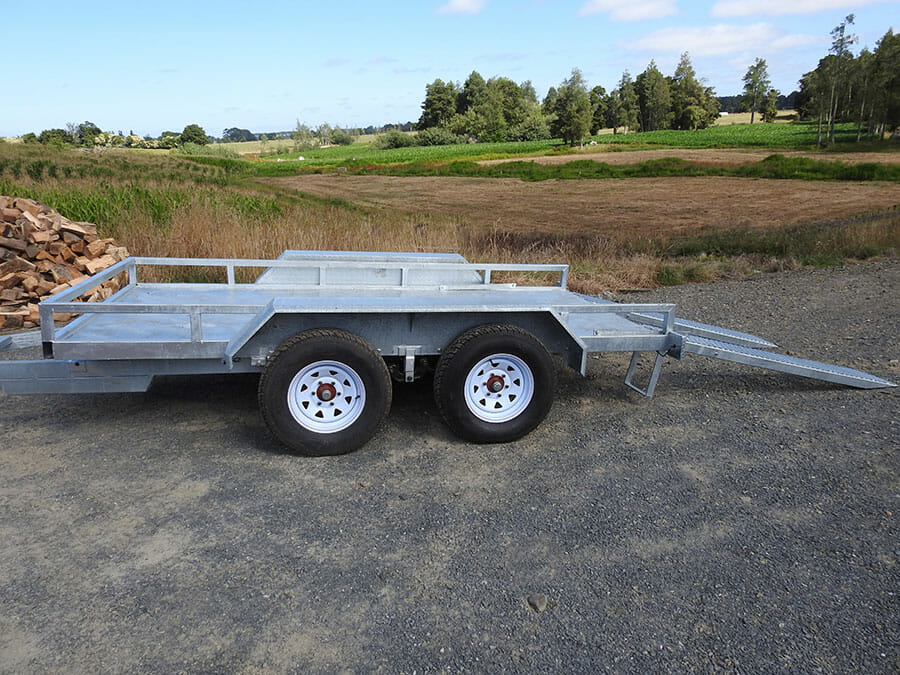

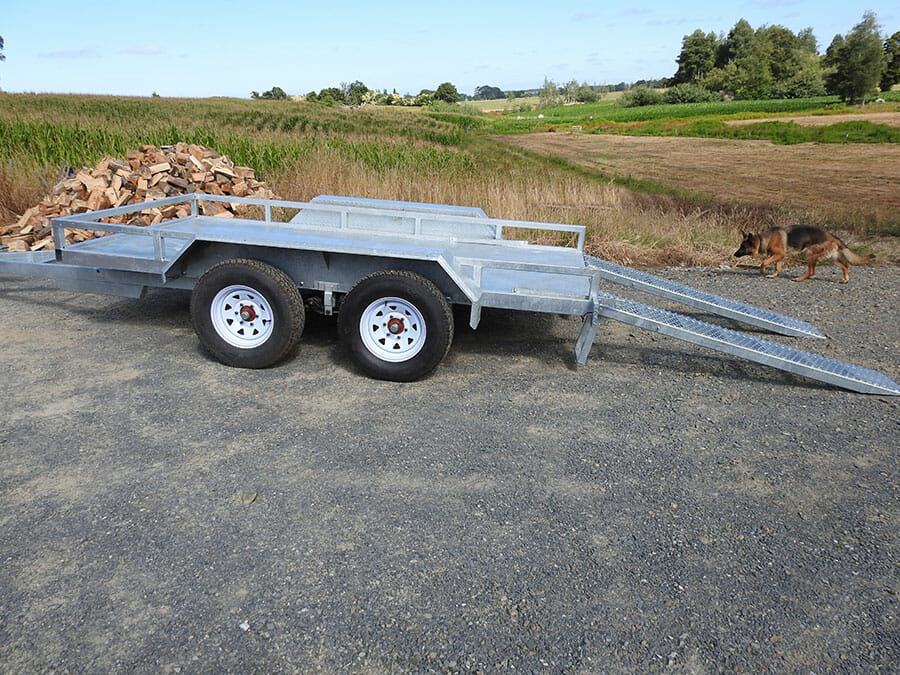

Our 12 x 5.66 (3.600 x 1.800)  transporter trailer is ideal for transporting diggers up to 2.7 ton in weight. The transporter has easy usable ramps that simply lower down, allowing vehicles to be loaded with ease. Of course, you can also use the trailer as a flat deck for many other carrying possibilities.

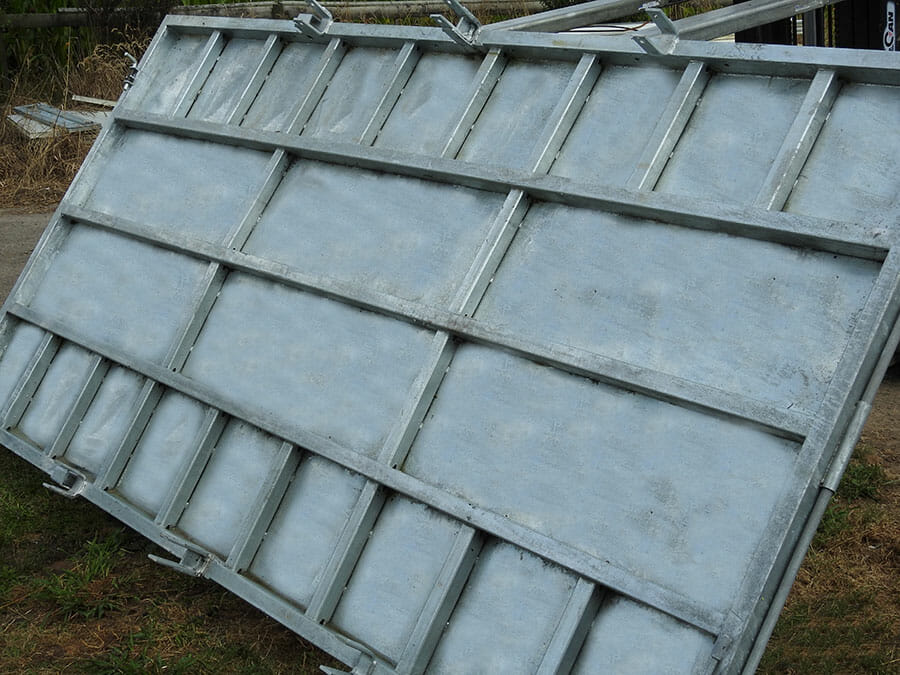

The trailer has been made with heavy gauge 4mm steel 50mm box section for the chassis at 300mm centers, reducing the chance of bowing in the trailer frame.  The floor has fully welded heavy gauge checker tread plate, offering added strength and easy cleaning, and front wheel bollards for safety.

A solid set of axles gives the trailer superior carry strength and the larger size box section draw bar, handles all your loads with ease and makes backing a breeze.

The trailer comes with an extra heavy duty jockey wheel as standard which makes it easier to remove a loaded trailer. You also have the choice of purchasing the optional spare wheel and bracket.

As with our other models, our trailers have been designed and manufactured with the end user in mind. When you buy a Tui Trailer you can be sure you are buying a reliable  trailer you will be proud to own.

12 x 6  Digger Tandem Trailer – Features

  • 12×6 Super heavy duty tandem axle transporter trailer.

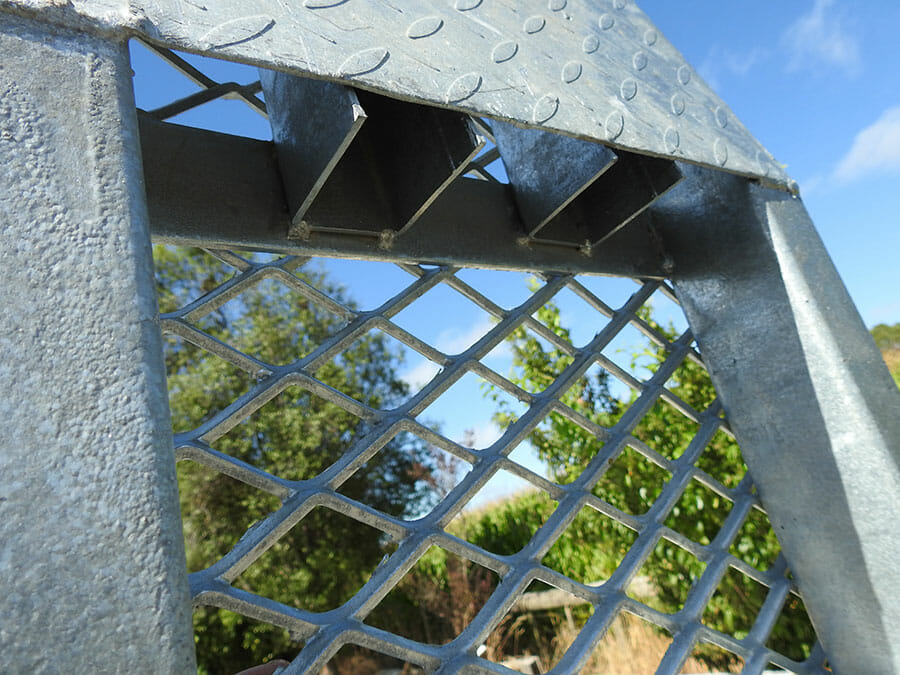

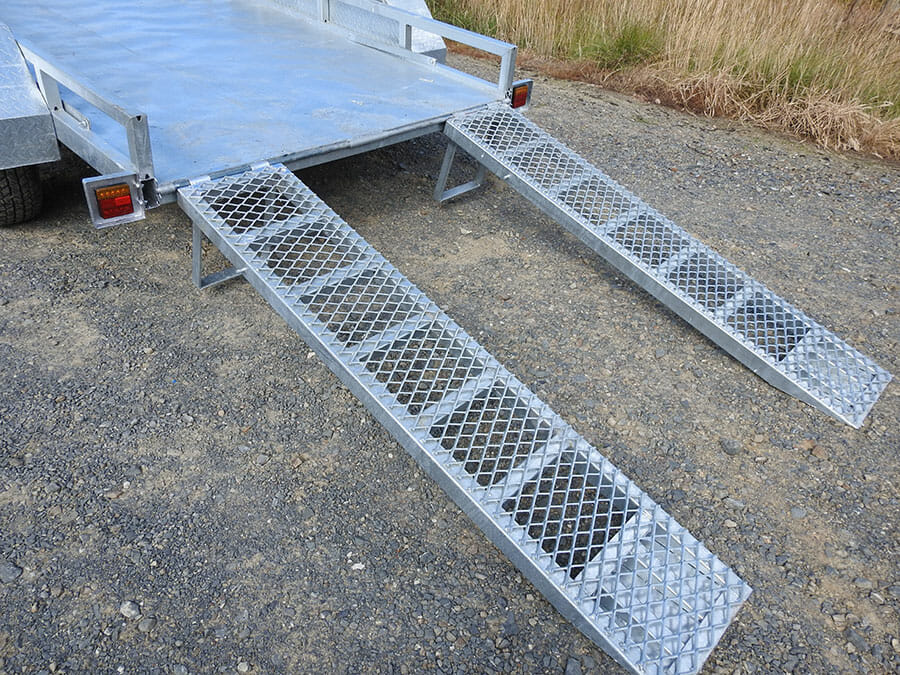

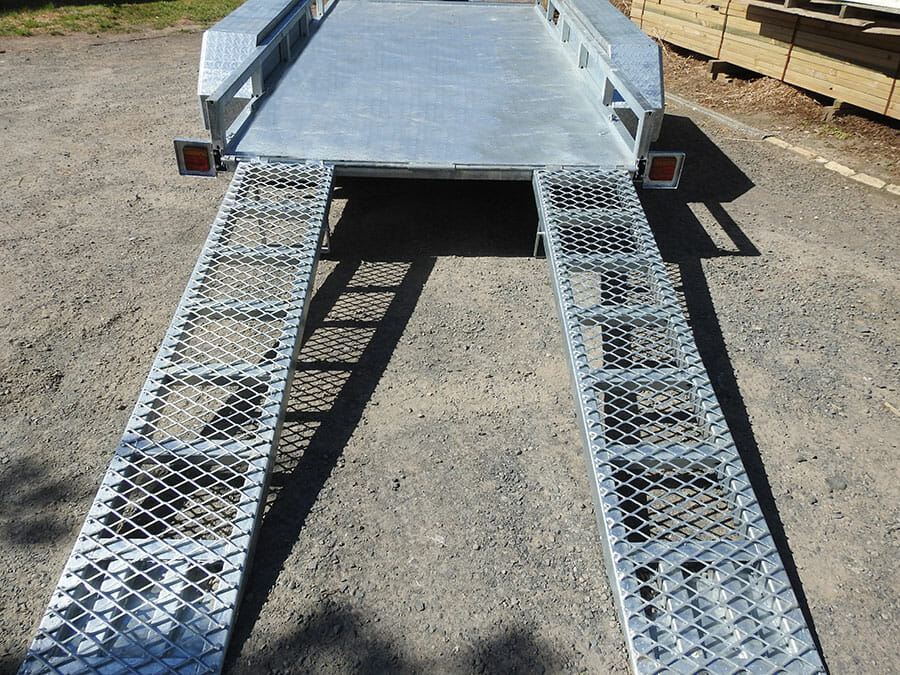

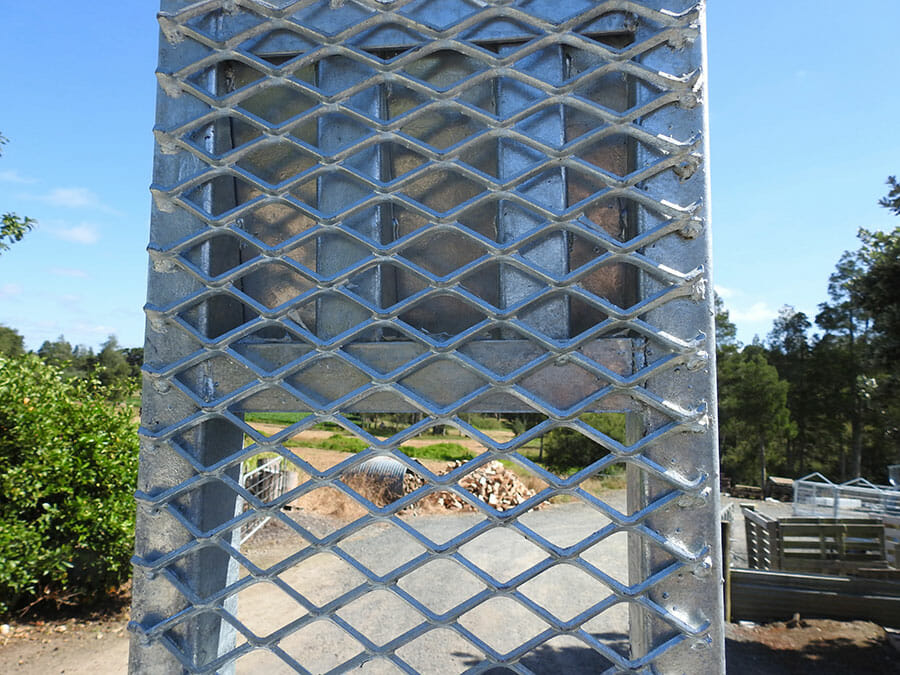

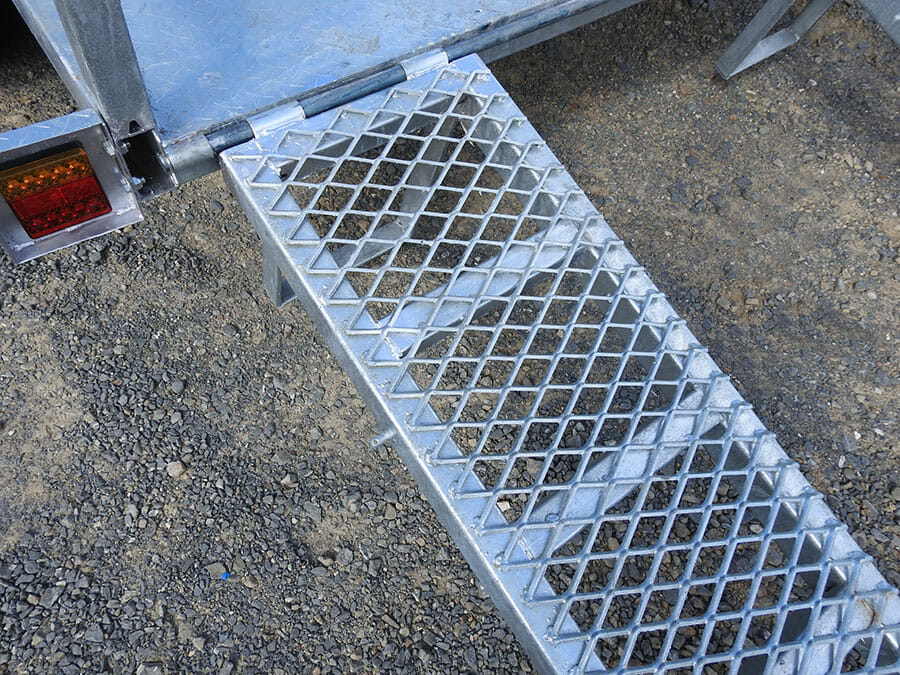

  • High quality galvanized ramps, easy to lower and raise

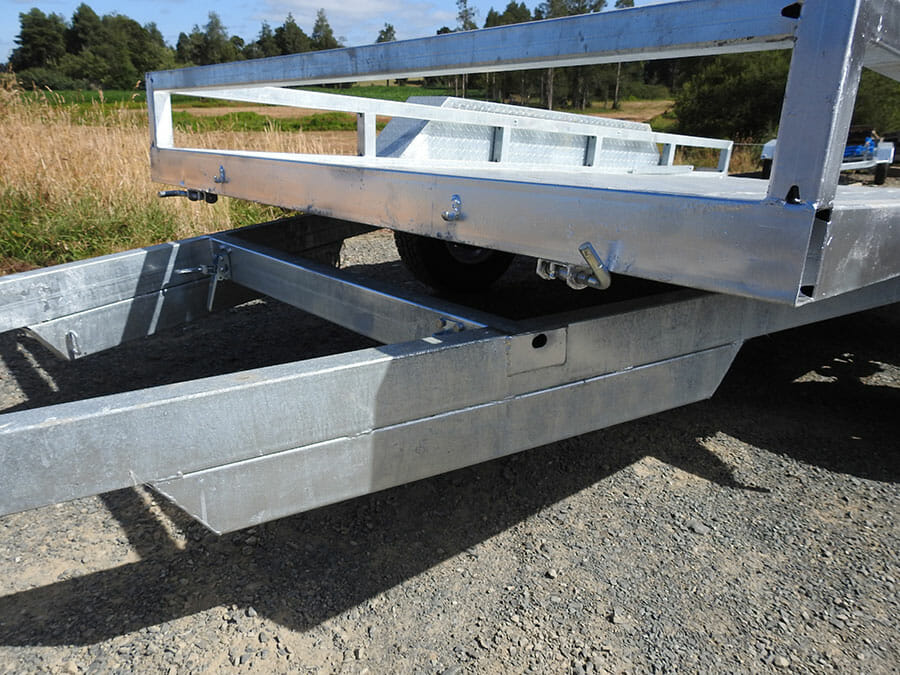

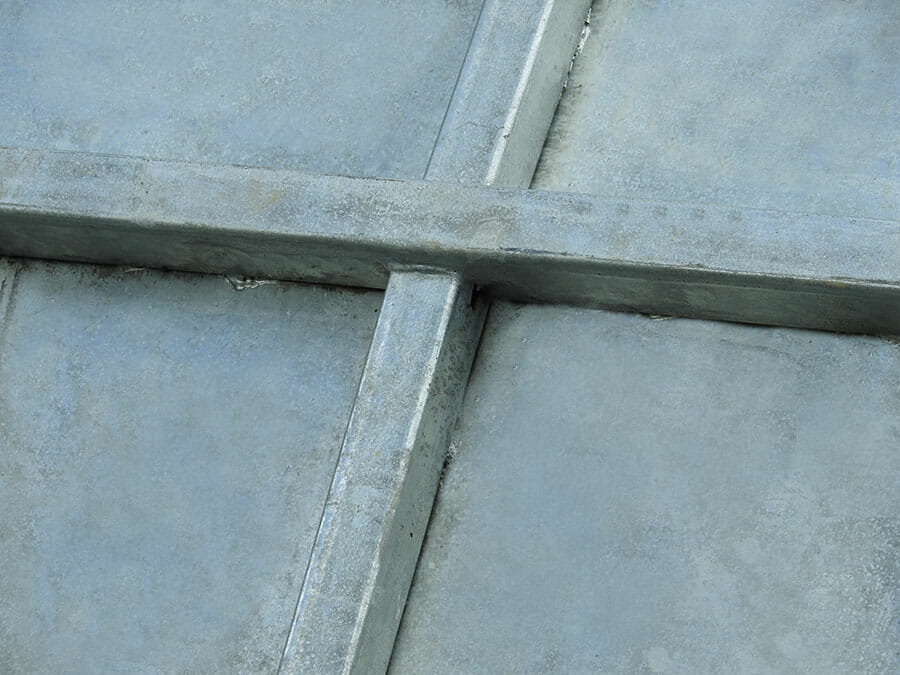

  • Chassis: 100 x 50 x 4mm RHS, 70 x 50 x 3mm RHS and 50 x 50 x 3mm RHS. Chassis with spacing’s of 300mm.
  • Electric brakes 4 wheel braking. Please ask about these and brake controllers required
  • 3500kg GVM (Gross Vehicle Mass – please check your vehicle’s ability to tow)

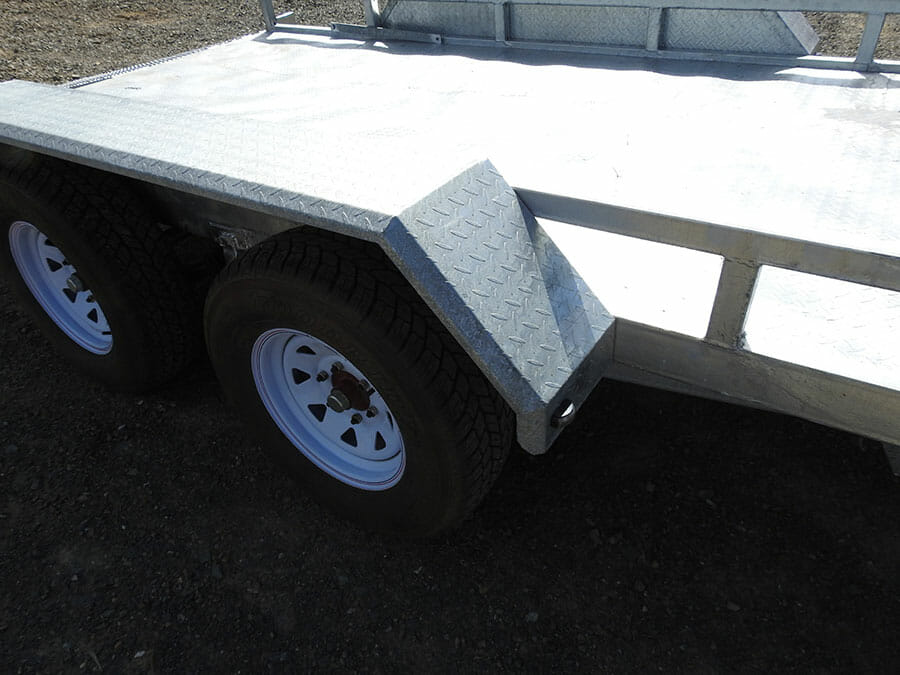

  • Checker plate 2.75mm mudguards.
  • Triangle braces on mudguards, with foot steps.
  • Heavy duty full length side tie down rails.

…Plus all Standard Tandem Axle Trailer Features

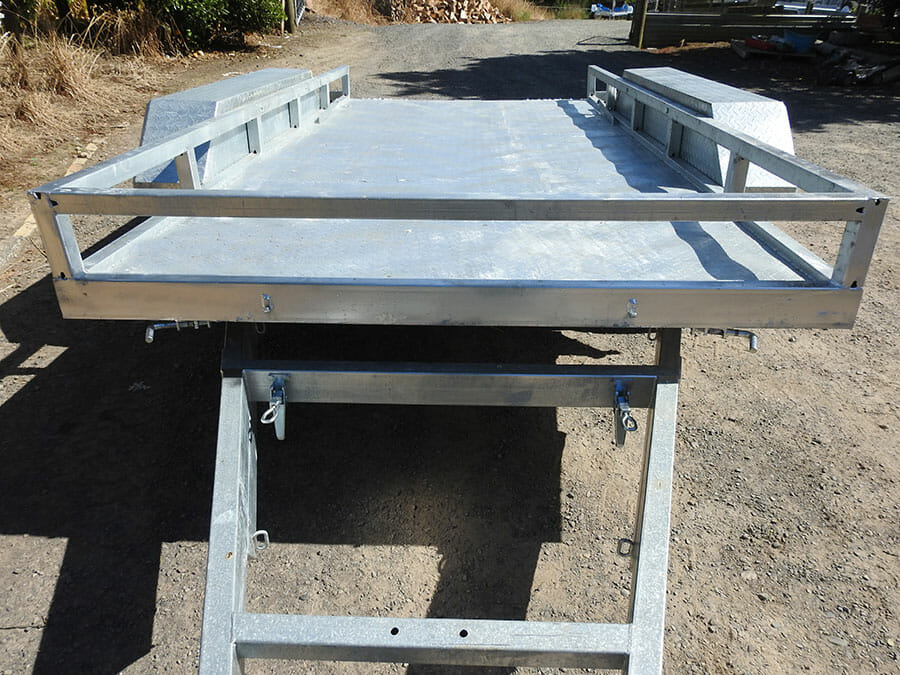

  • Draw-bar: 100 x 50 x 4 mm RHS (long enough to put toolbox on, long draw bars also make reversing easier).
  • Wheels: 185R14LT NEW TYRES and Powder coated rims. (Spare wheel and bracket optional extra)
  • NZ 1 7/8″ Coupling & safety chains.
  • Jockey Wheel (Extra Heavy Duty Folding).
  • LED light set, fitted within protective metal frame for added protection.
  • NZ standard 7 pin flat plug.
  • Our 5 year structural warranty, see our warranty info.
  • Meets and exceeds NZ LTSA standards.

Optional extras:

  • On-road costs $160.00
  • Spare 14 Inch LC wheel and bracket  $240.00
  • Selection of lockable aluminum tool boxes starting from $260.00.

Buying Direct From us $8,990.00 Gst inclusive for fully assembled Tui Trailer
Some specs can be subject to change.
