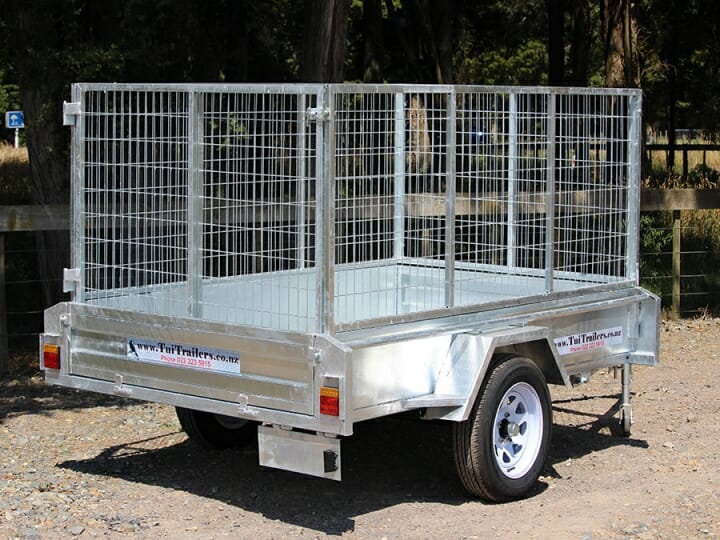

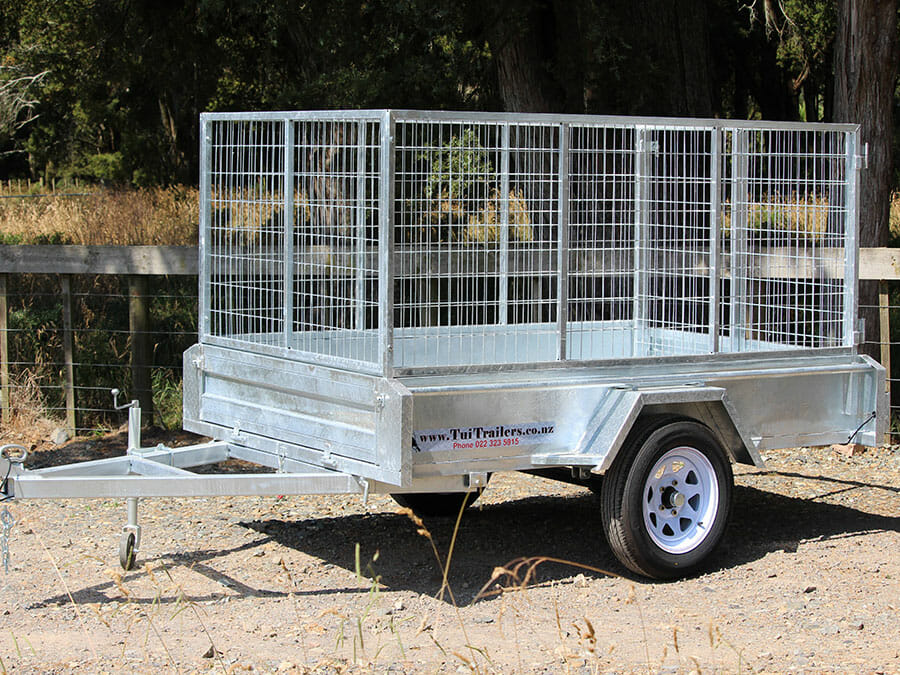

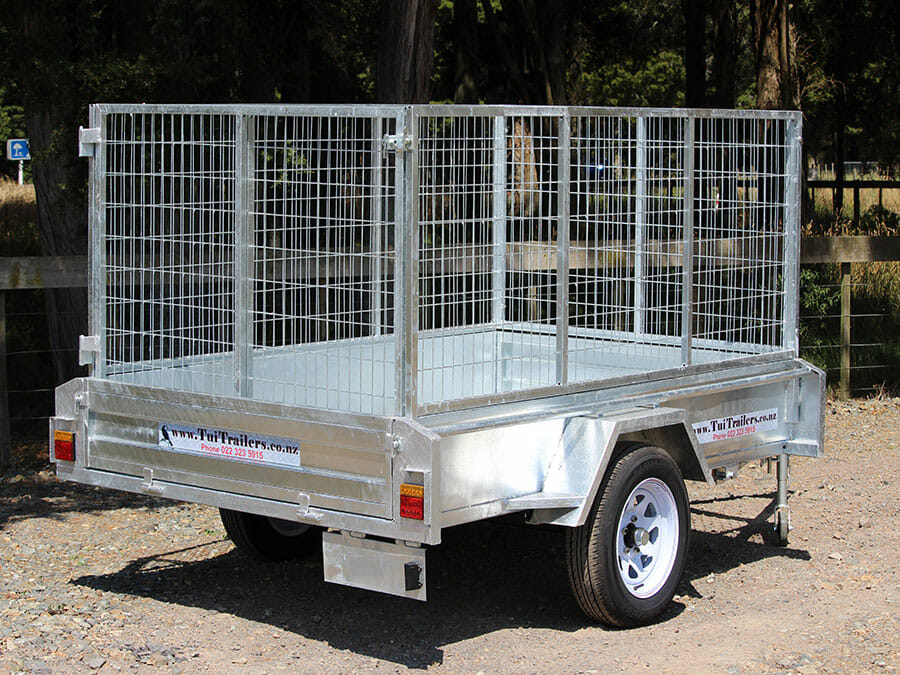

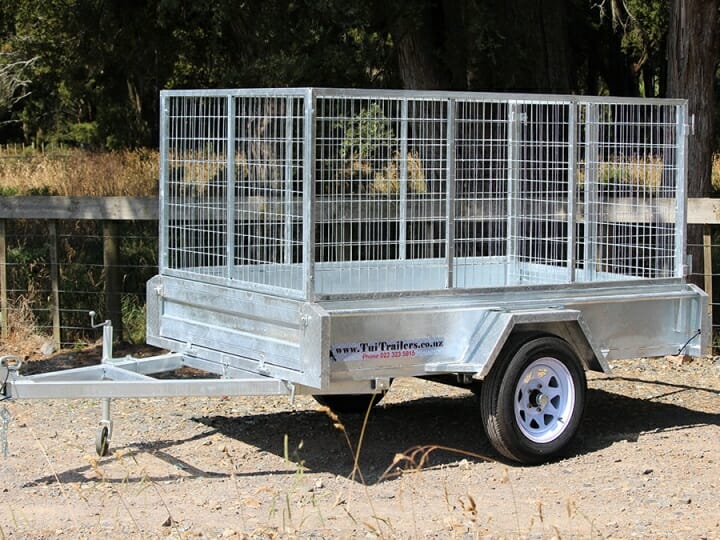

Super Heavy Duty 8 x 5 Trailer with 900mm Stock Crate

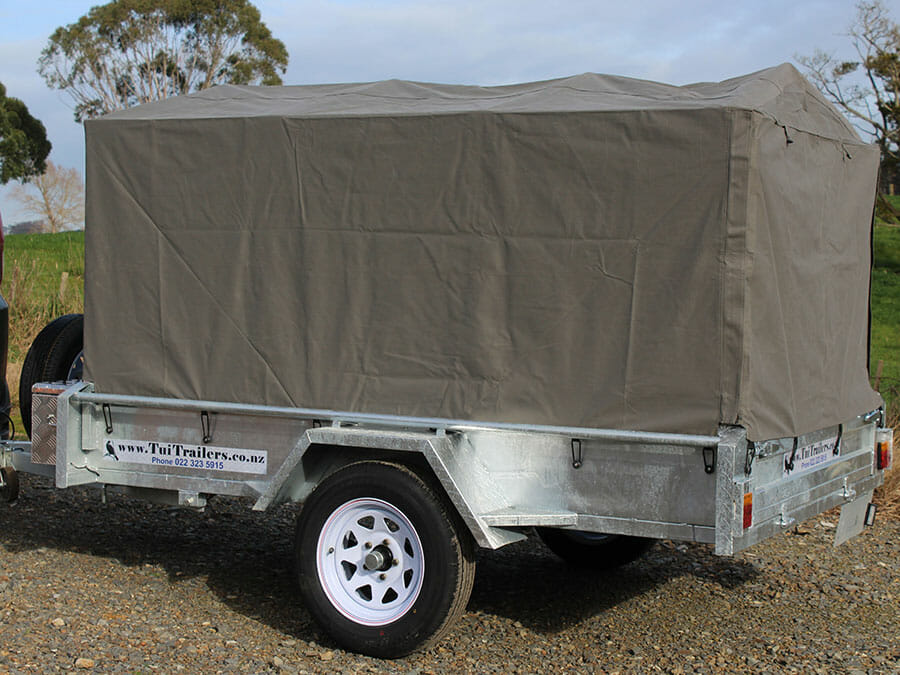

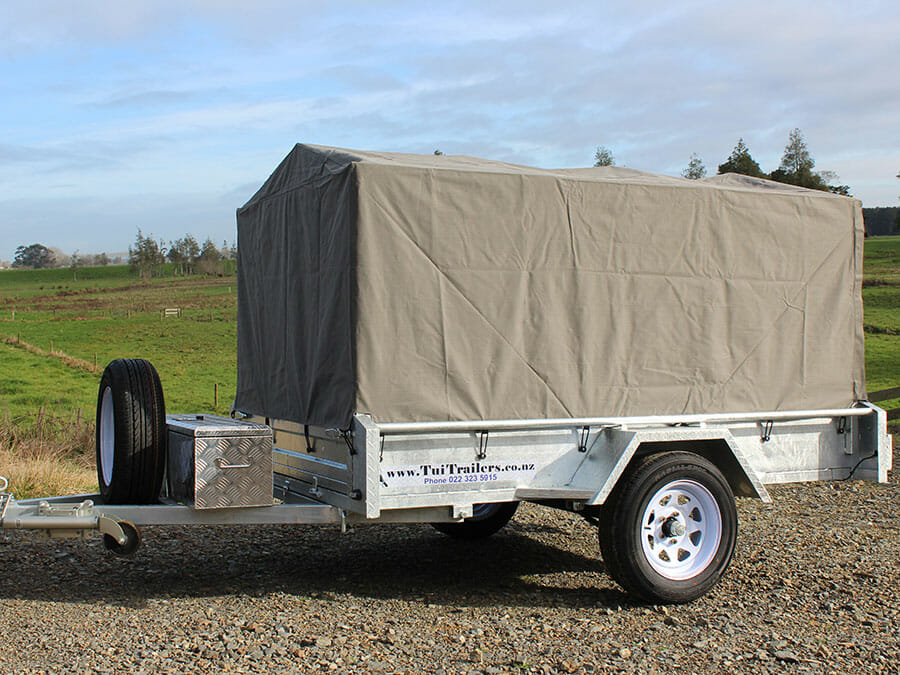

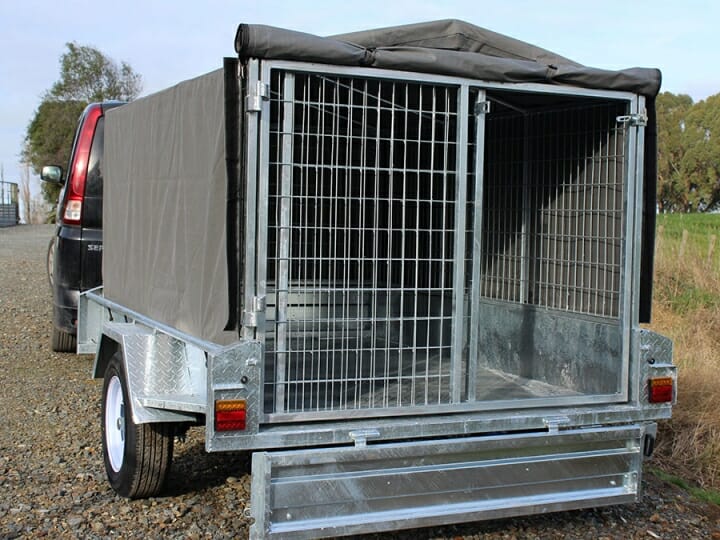

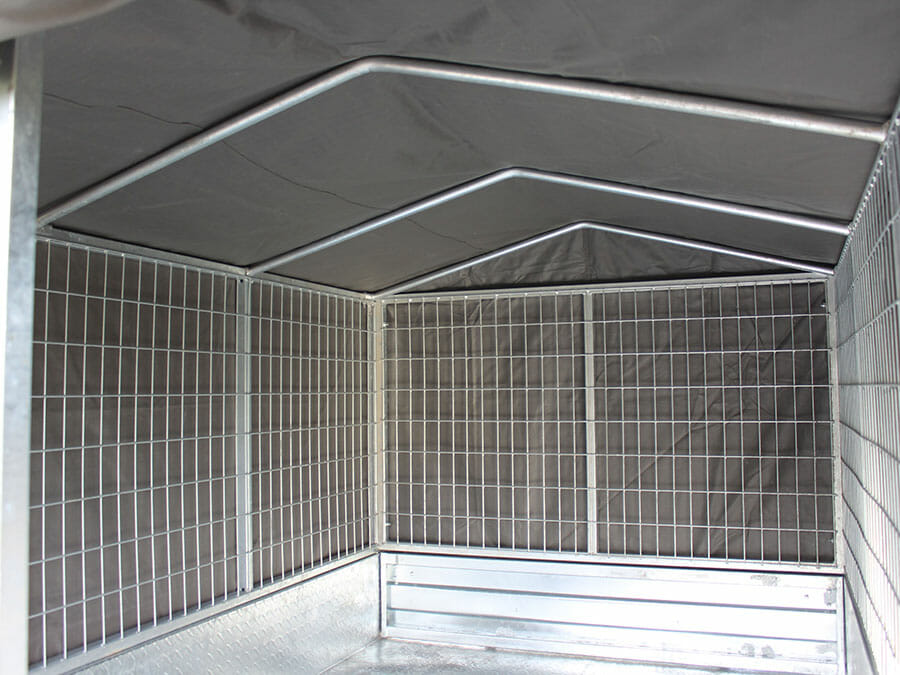

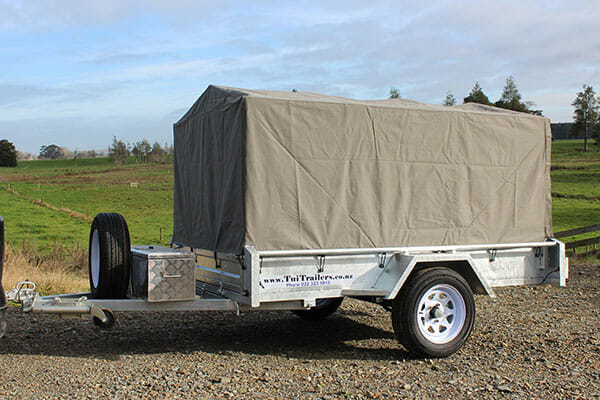

Here is one trailer that is perfect for your stock transport needs. The 900mm cage with sliding gate makes this the ideal trailer for transporting young calves, sheep and goats. (Ask us about canvas cover options for this trailer).

This model has fully welded construction with a welded checker plate floor for added strength and easy cleaning.

The trailer comes with a jockey wheel as standard, making life so much easier to remove a loaded trailer. You also have the choice of purchasing the optional spare wheel and bracket.

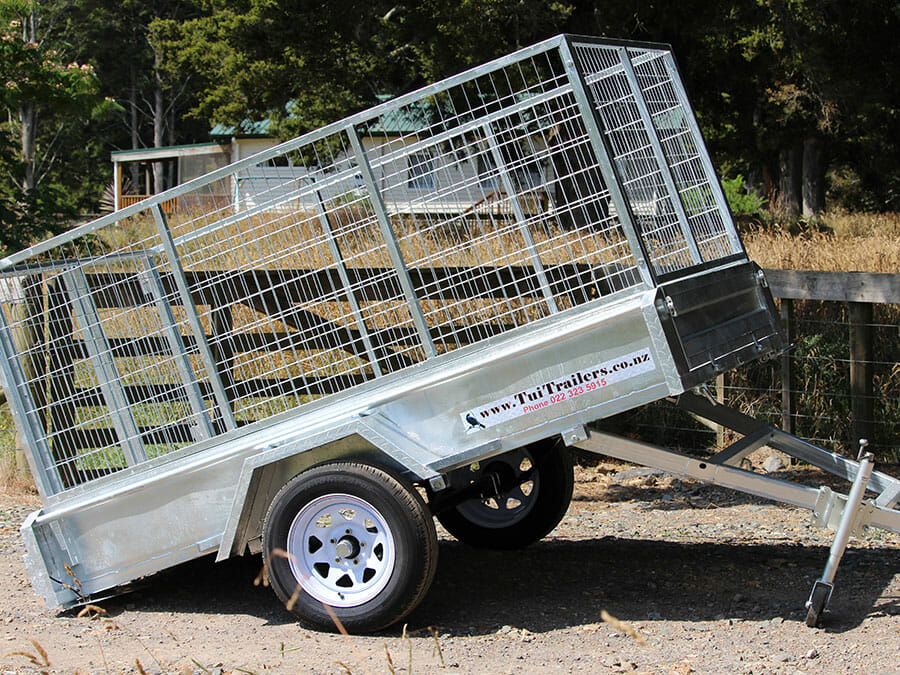

All our single axle trailers are tilt trailers – this is a great feature which almost everyone will use at some stage. It makes dumping lawn cuttings or rubbish so much easier.

Super Heavy Duty 8 x 5 with 900mm Stock Crate – Features

  • 8×5 Super heavy duty stock trailer.
  • Hot dipped galvanized heavy gauge steel Fully Welded trailer construction. (not bolted)

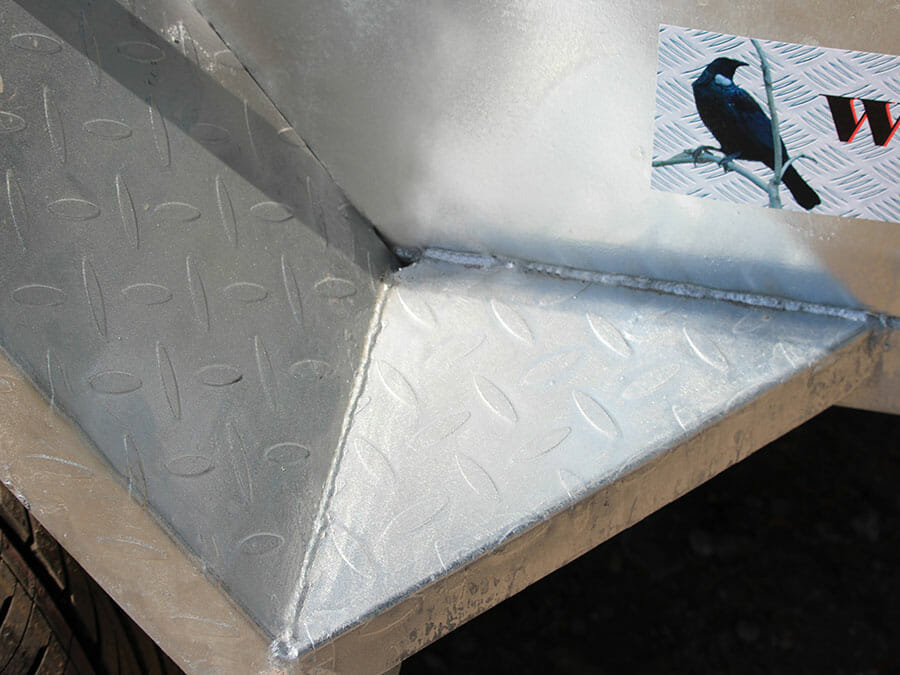

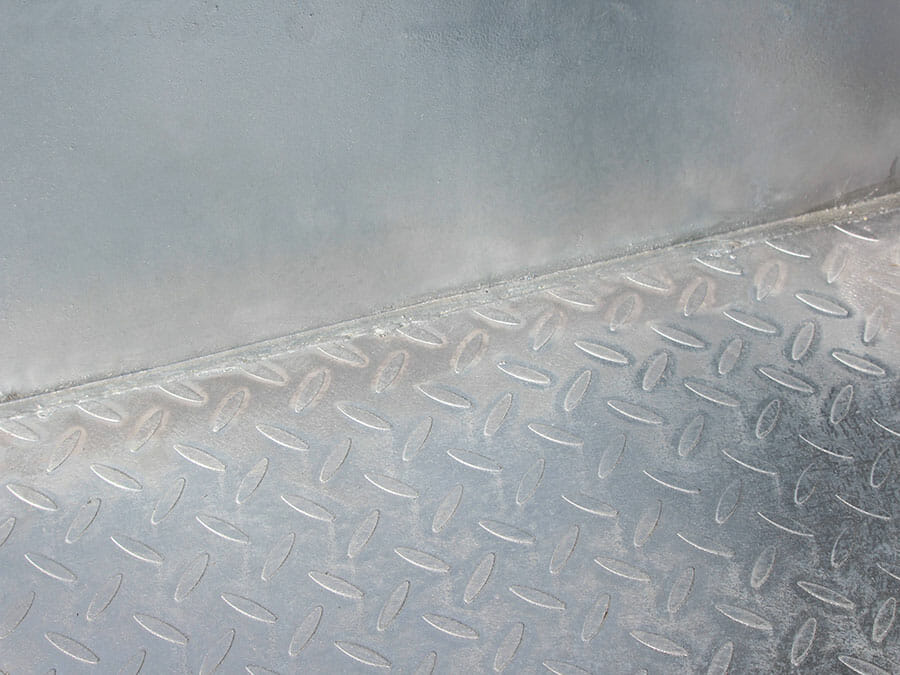

  • 2.75 mm fully welded checker plate floor for strength and easy cleaning.

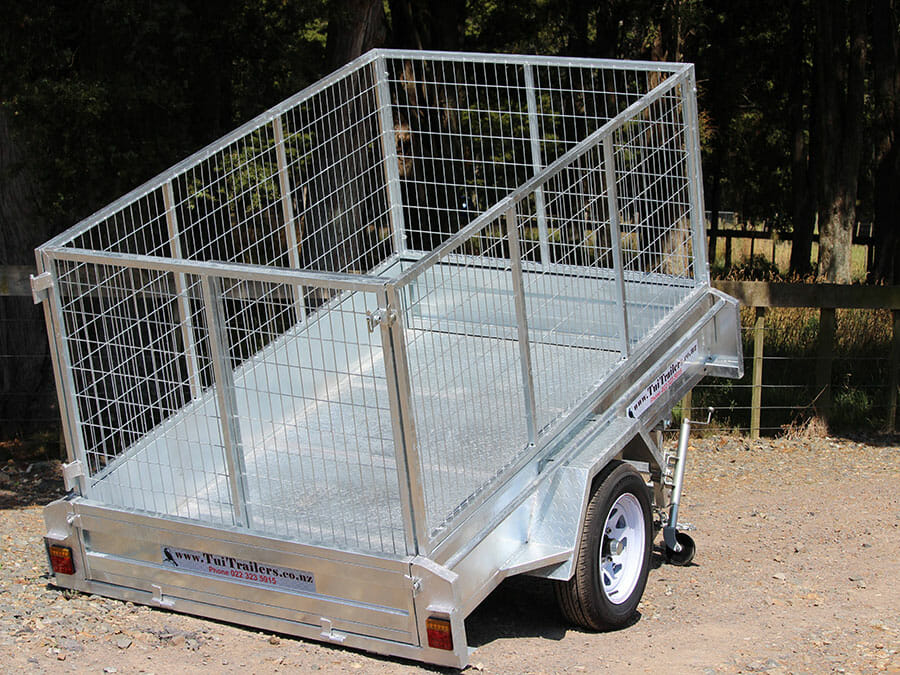

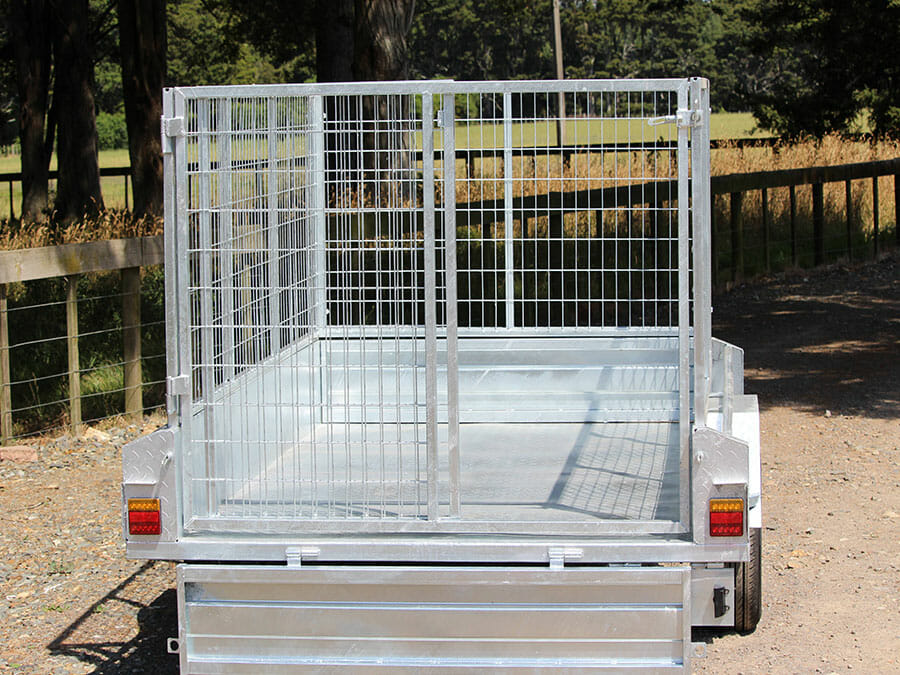

  • High quality galvanized Stock Crate, 900mm high sides,

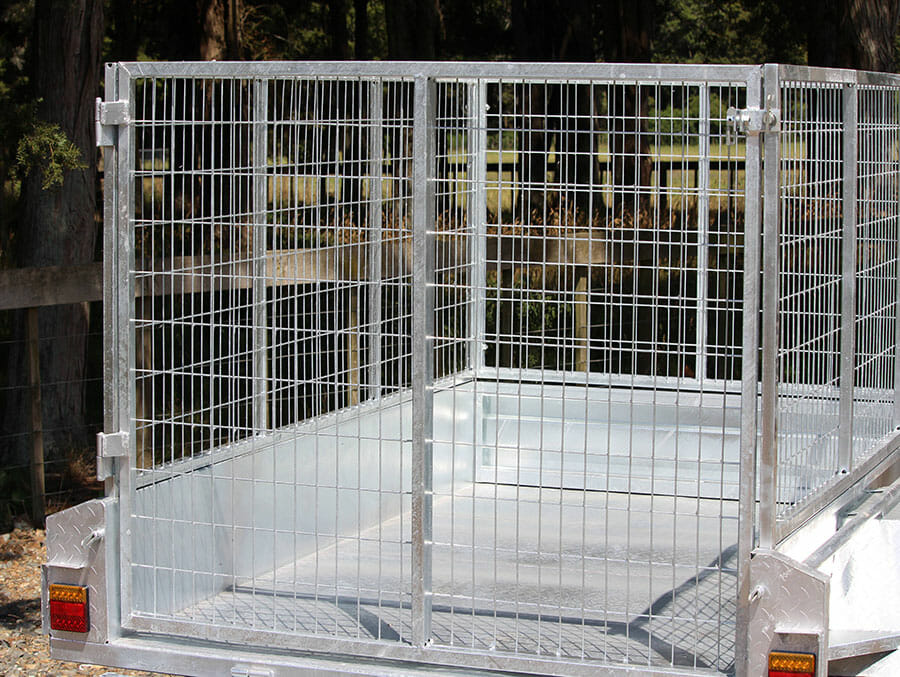

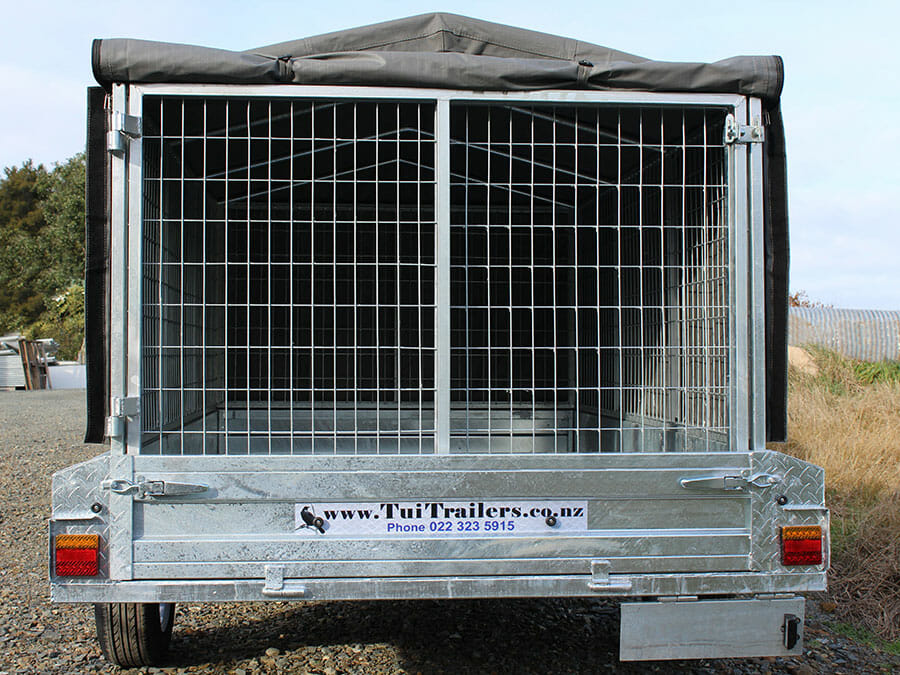

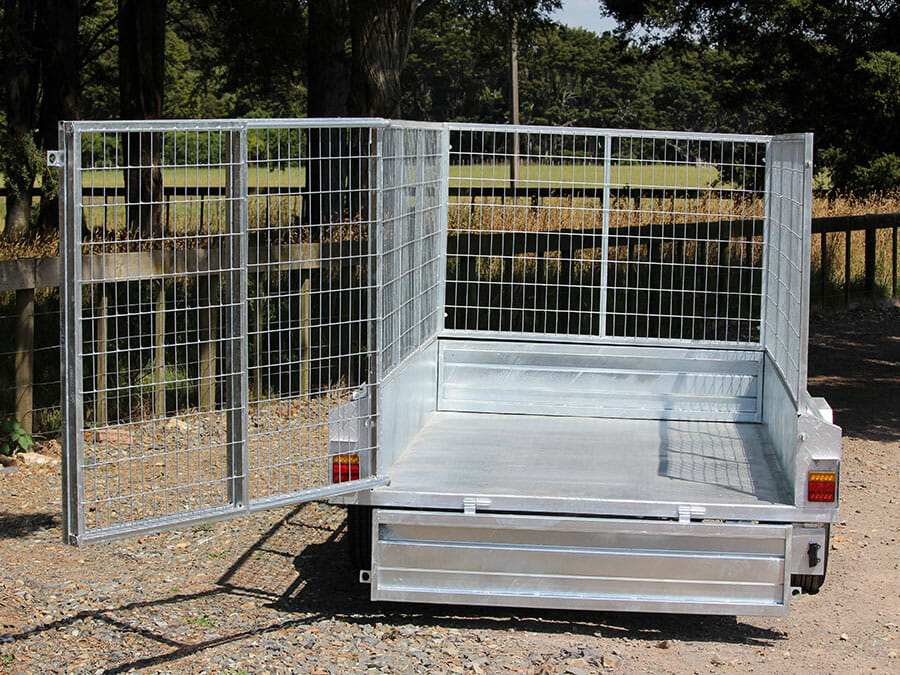

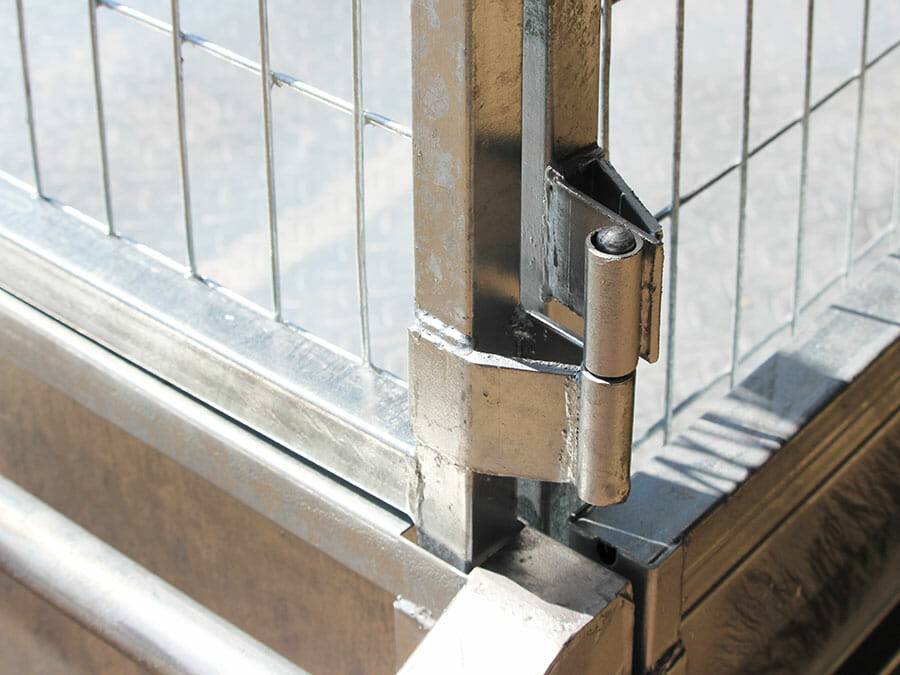

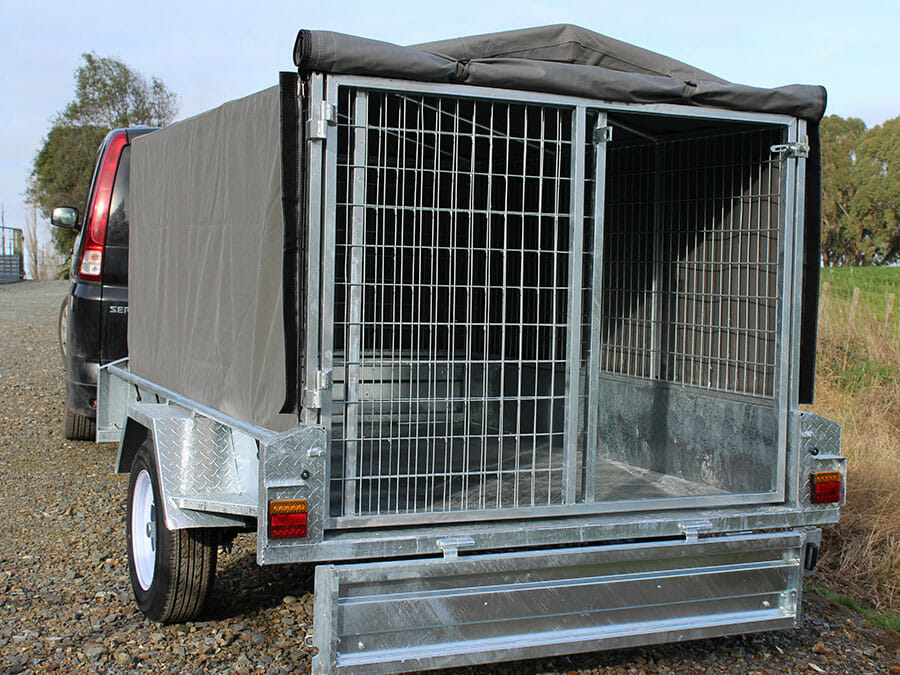

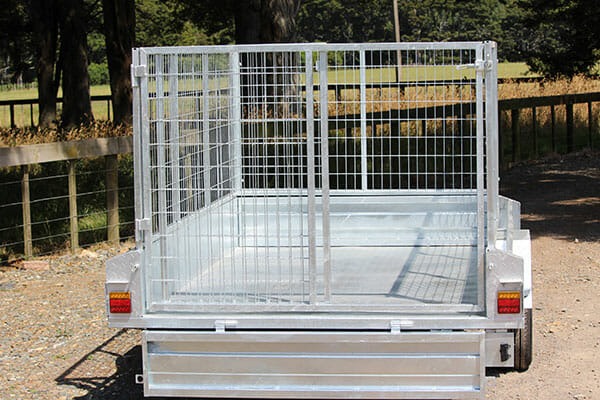

  • Sliding rear (half Door), Swing opening rear door, also removable.

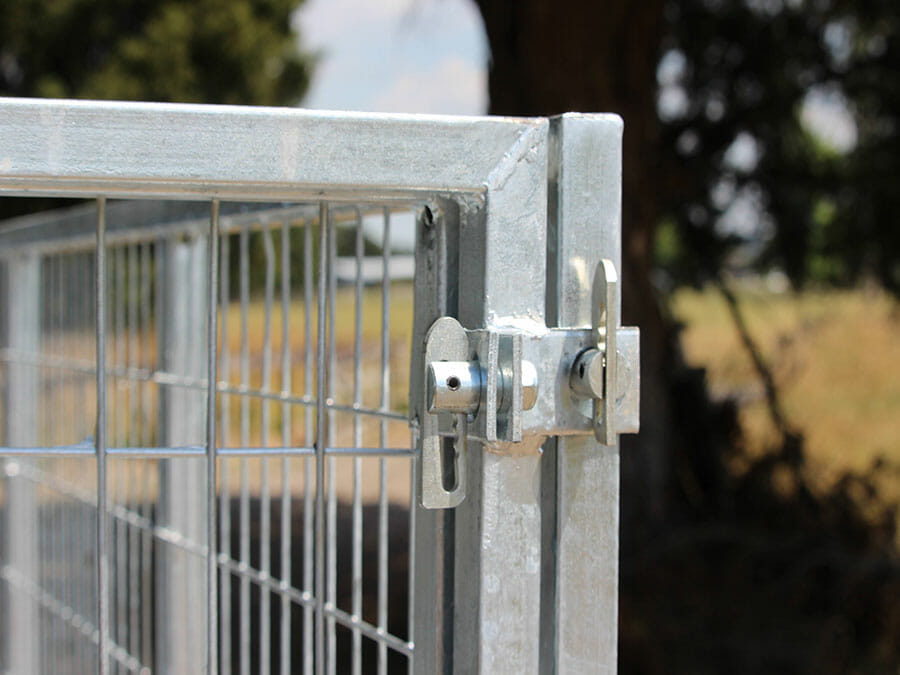

  • Crate is easily removed if required, fits into place with 4 corner poles very secure, simple to remove.
  • Tipper tilt trailer 3 secure fixings.

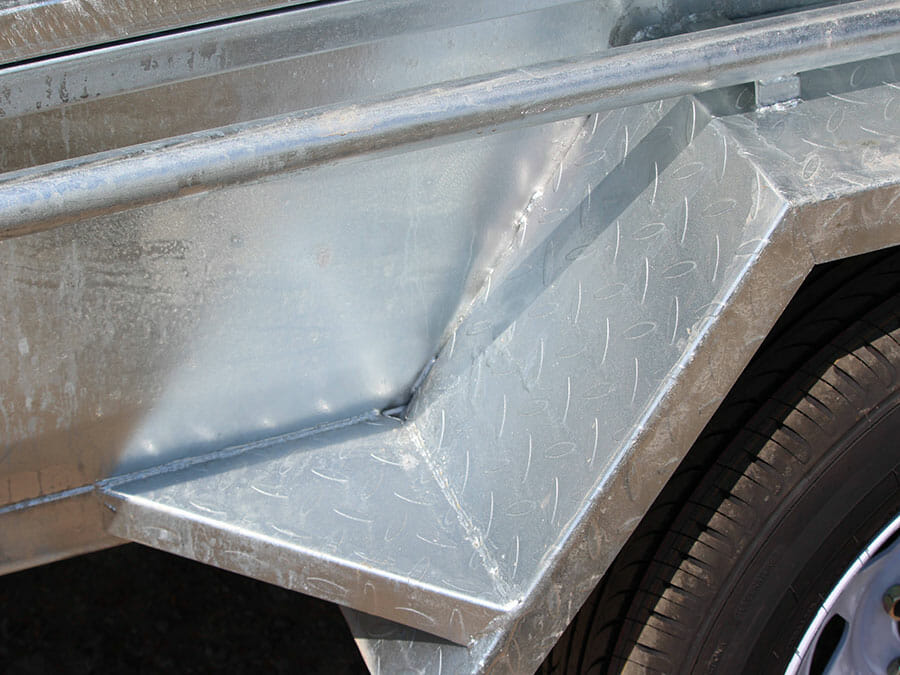

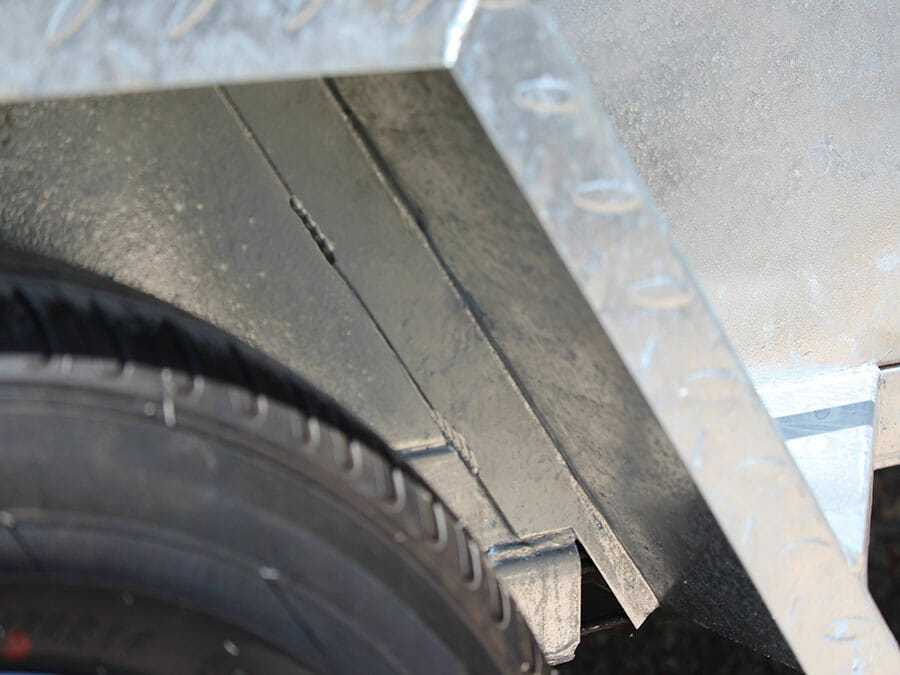

  • 2.75 mm Checker plate mudguards, strong enough to stand on.
  • Strong triangle braces on mudguards, also work as foot steps.

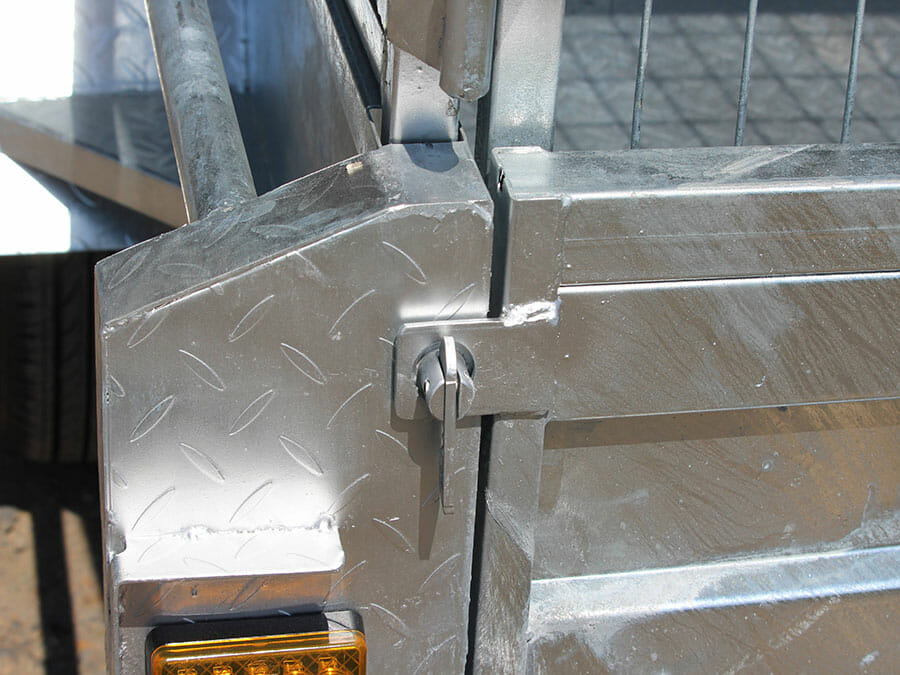

  • Front and rear tail gates that can be easily removed.

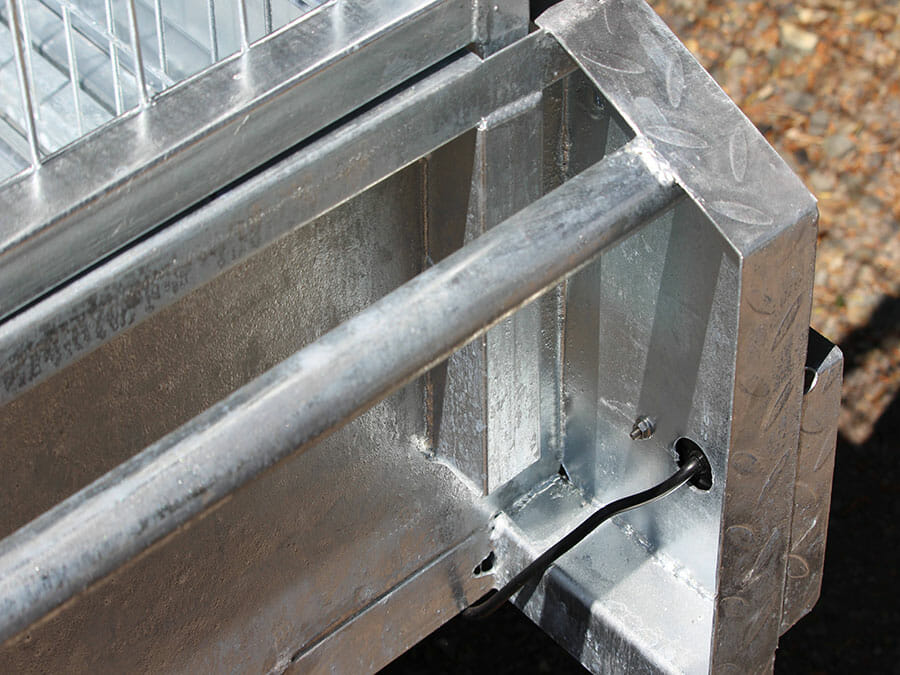

  • Full length side tie downs rods, very secure.
  • Chassis: 75 x 50 x 2.5-2.75 and frame 50 x 50 2.5mm RHS.

…Plus all Standard Single Axle Trailer Features

  • All Tui Brand single axle trailers are tipper tilt trailers.
  • Draw-bar: 75 x 50 x 4 mm RHS (long enough to put toolbox on, long draw bars also make reversing easier).
  • Wheels: 165/70R13 NEW TYRES and Powder coated rims. (Spare wheel and bracket optional extra) Wheels upgradeable to 14″ (see below)
  • NZ 1 7/8″ Coupling & safety chain.
  • Jockey Wheel (Heavy Duty Folding).

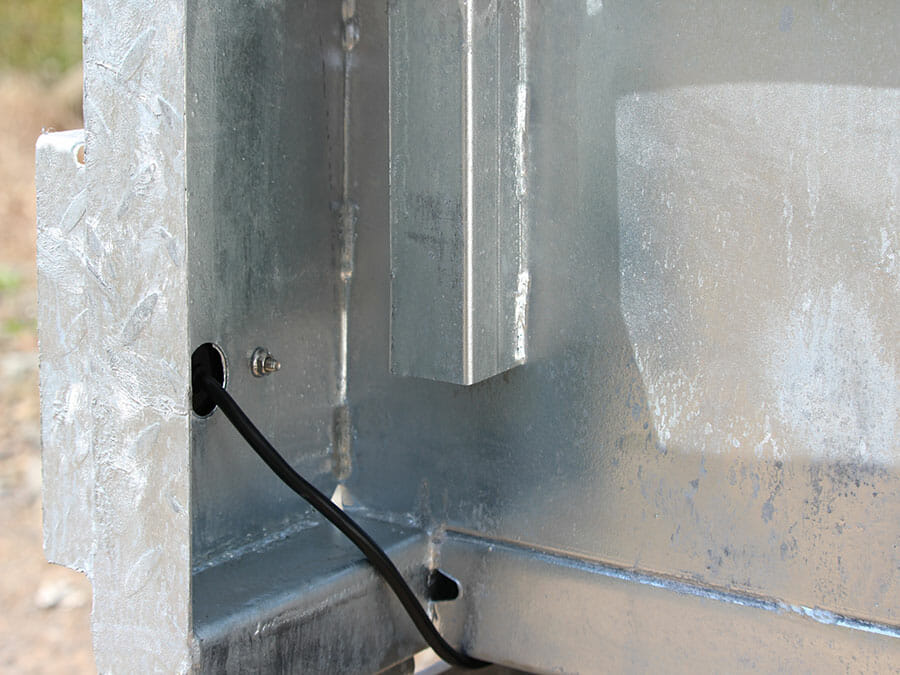

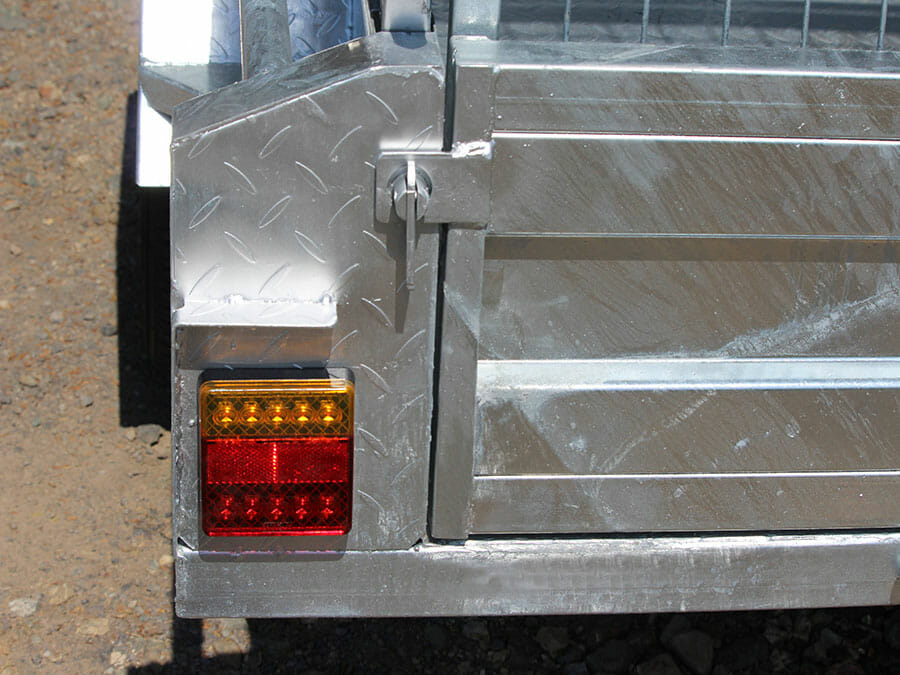

  • LED light set, fitted within protective metal frame for added protection.
  • NZ standard 7 pin flat plug.
  • Our 5 year structural warranty, see our warranty info.
  • Meets and exceeds NZ LTSA standards.

Optional extras:

  • On-road costs $160.00
  • Spare wheel and bracket  $180.00
  • Upgrade to 14″ Wheels $45.00 per wheel.
  • Selection of lockable aluminum tool boxes starting from $260.00
  • Hydraulic Brakes – please ask

Buying Direct From us $3185.00 Gst inclusive for fully assembled Tui Trailer
Some specs can be subject to change.
