9x5 Super Heavy Duty Trailer with 600mm Cage

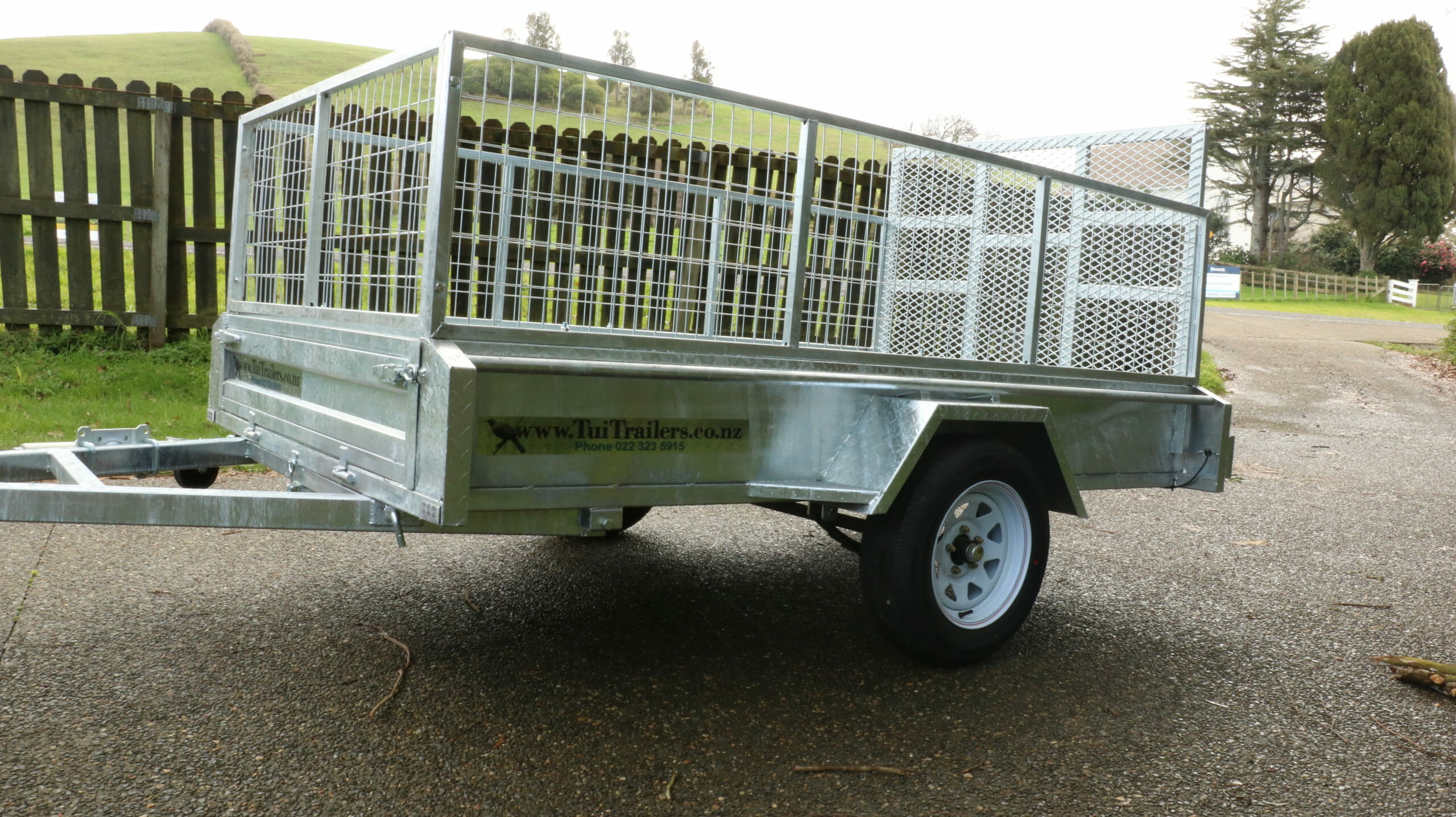

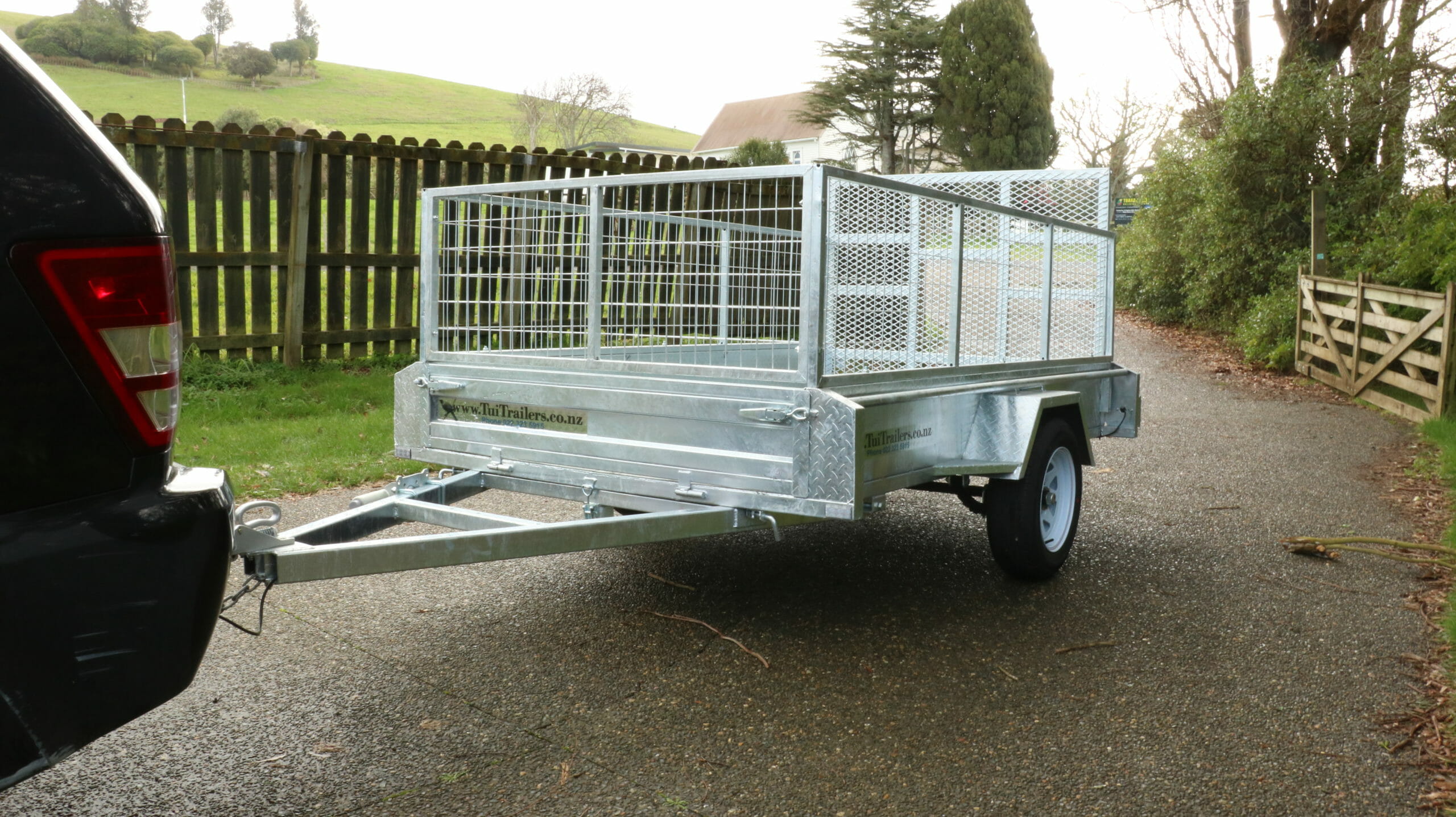

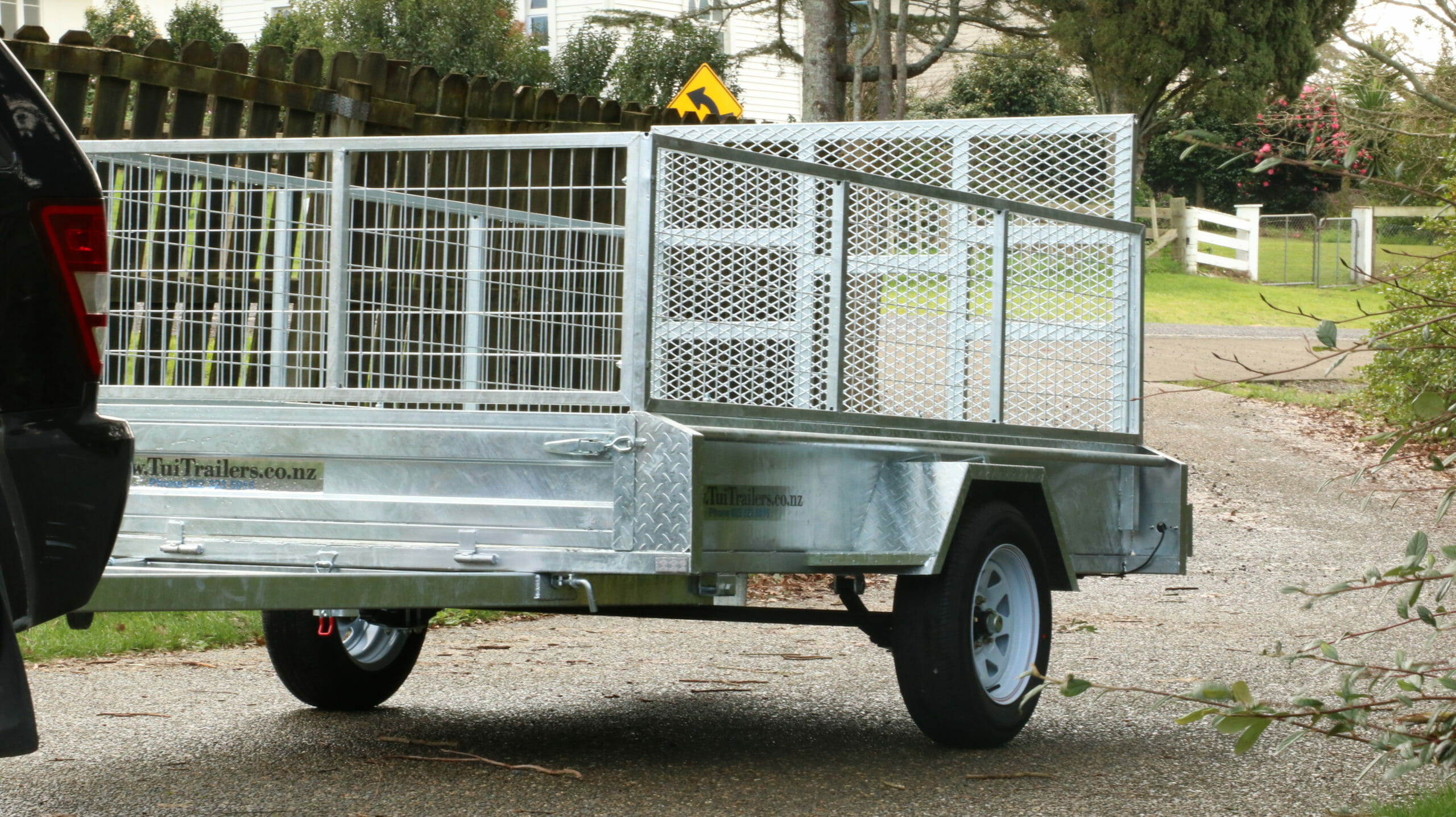

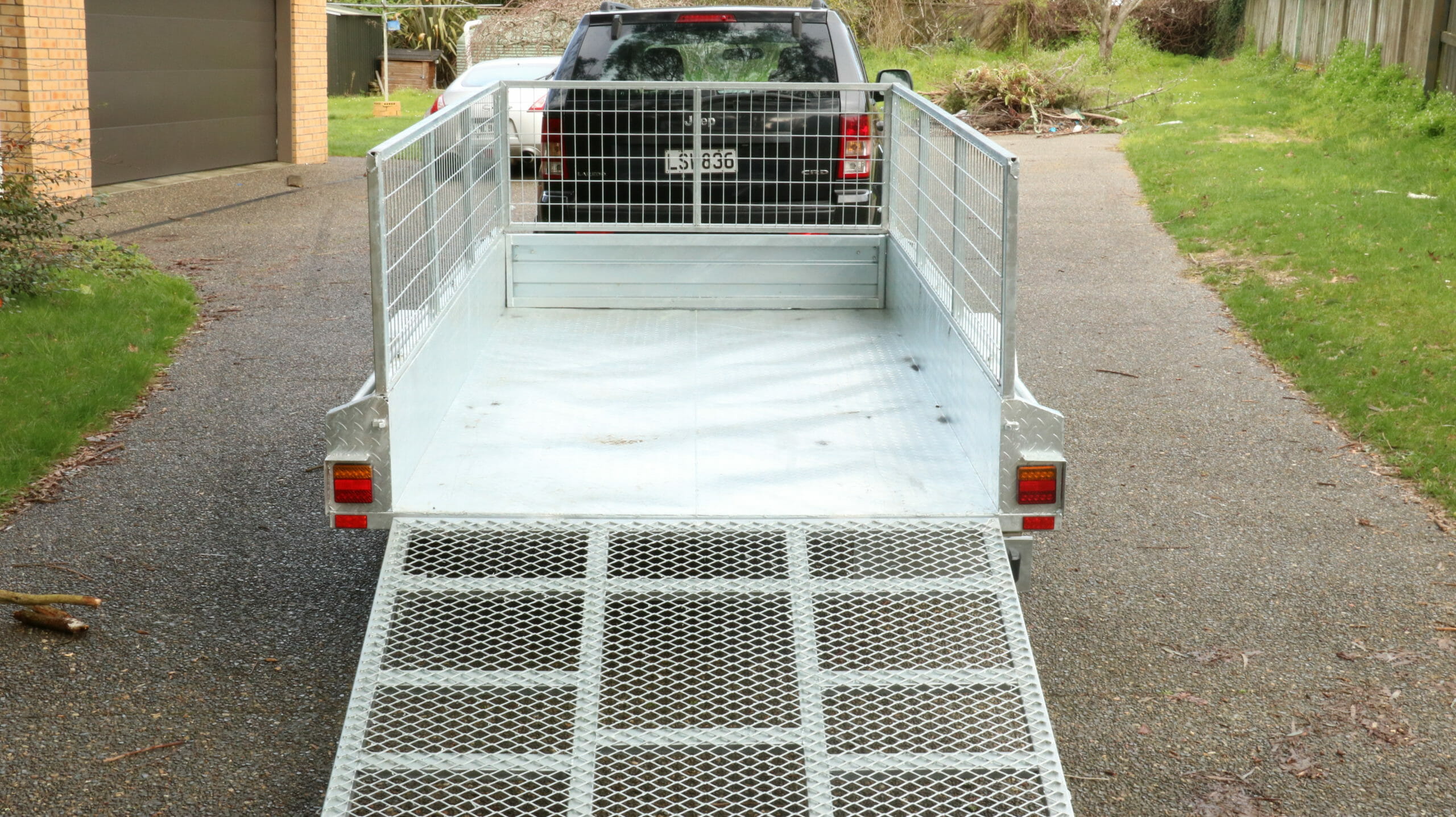

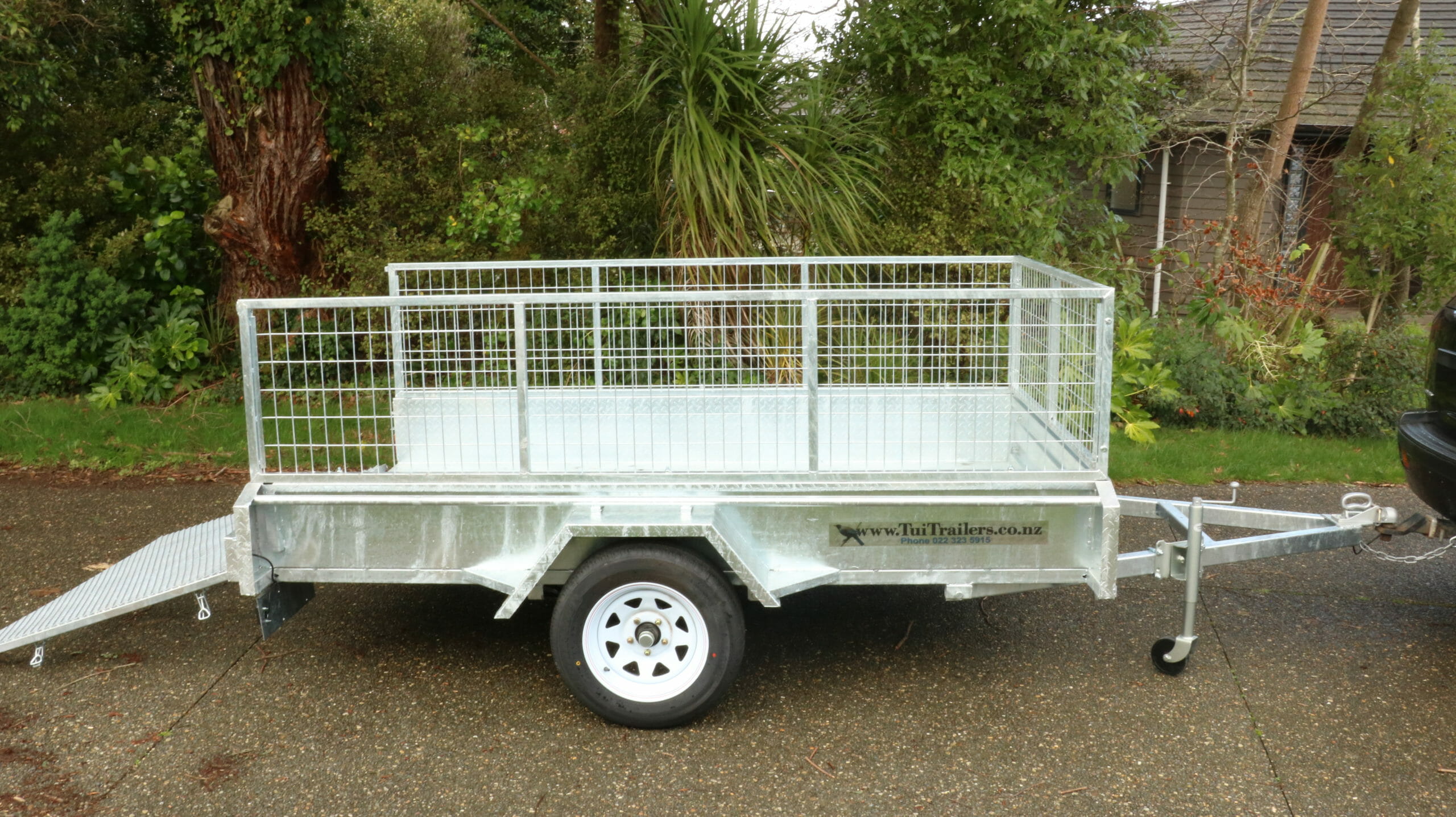

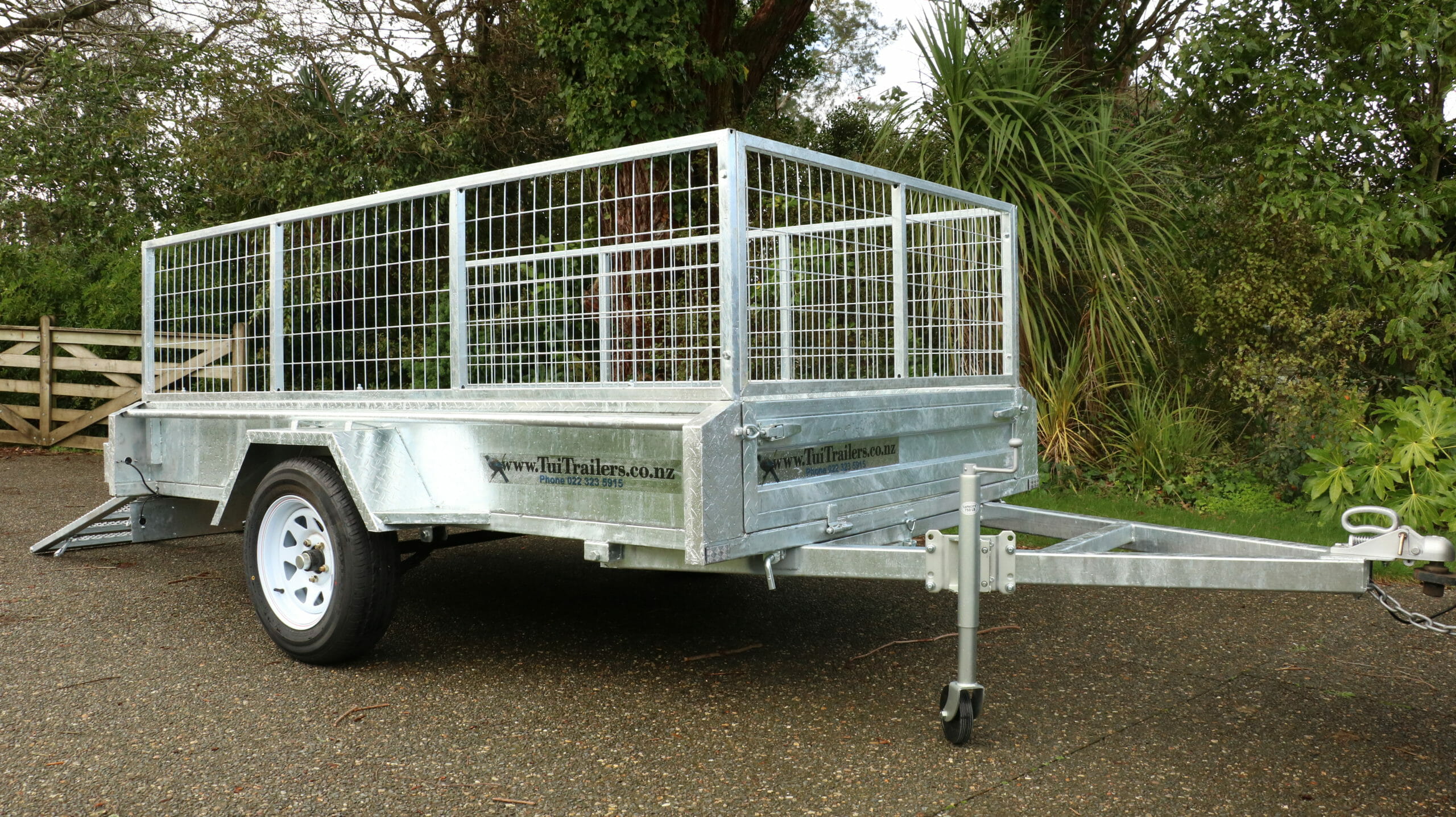

Photos show 9x5 Super Heavy Duty with Ramp (at extra cost)


If you are wanting a super heavy duty trailer that can handle bigger and heavier loads, then this trailer with its 600mm cage, could be the ideal choice.

This trailer is a popular model with our customers. The body is of  fully welded construction with a welded checker plate floor for added strength and easy cleaning.

We have incorporated our tipping tilting action with this trailer as we have in all our single axle models, which makes unloading easier.

The trailer comes with a jockey wheel as standard to make life easier when removing the loaded trailer from your vehicle. You also have the choice of purchasing the optional spare wheel and bracket.

Our trailers have been designed and manufactured with the end user in mind. They are built strong and reliable and tow like a dream. We hope you will be proud to own a Tui Trailer.

For 900mm cage and ramps, please ask us for current prices

9×5 Super Heavy Duty with 600mm Cage Features

  • 9×5 Super heavy duty trailer.
  • High quality galvanized Cage,600mm high sides,

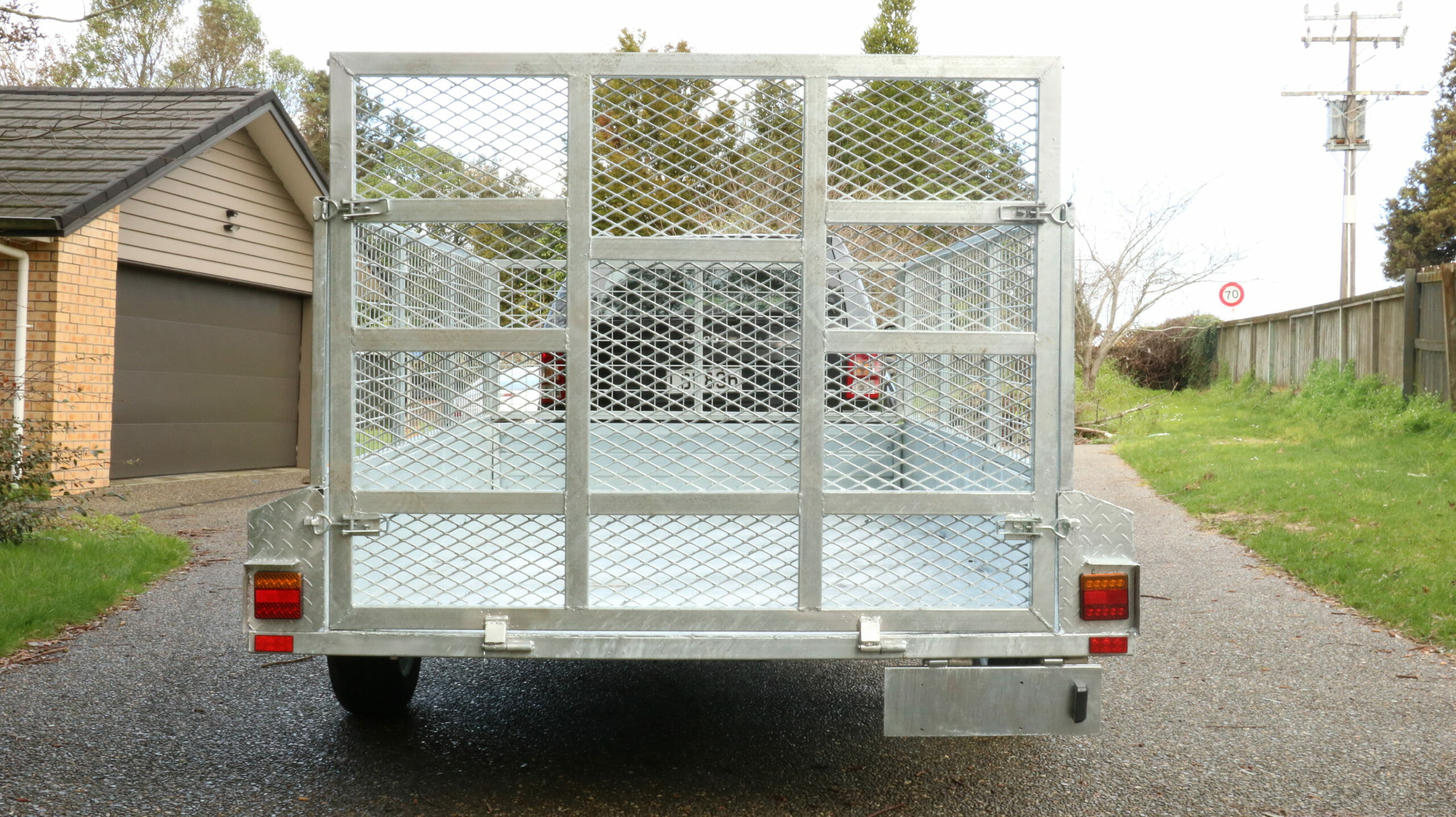

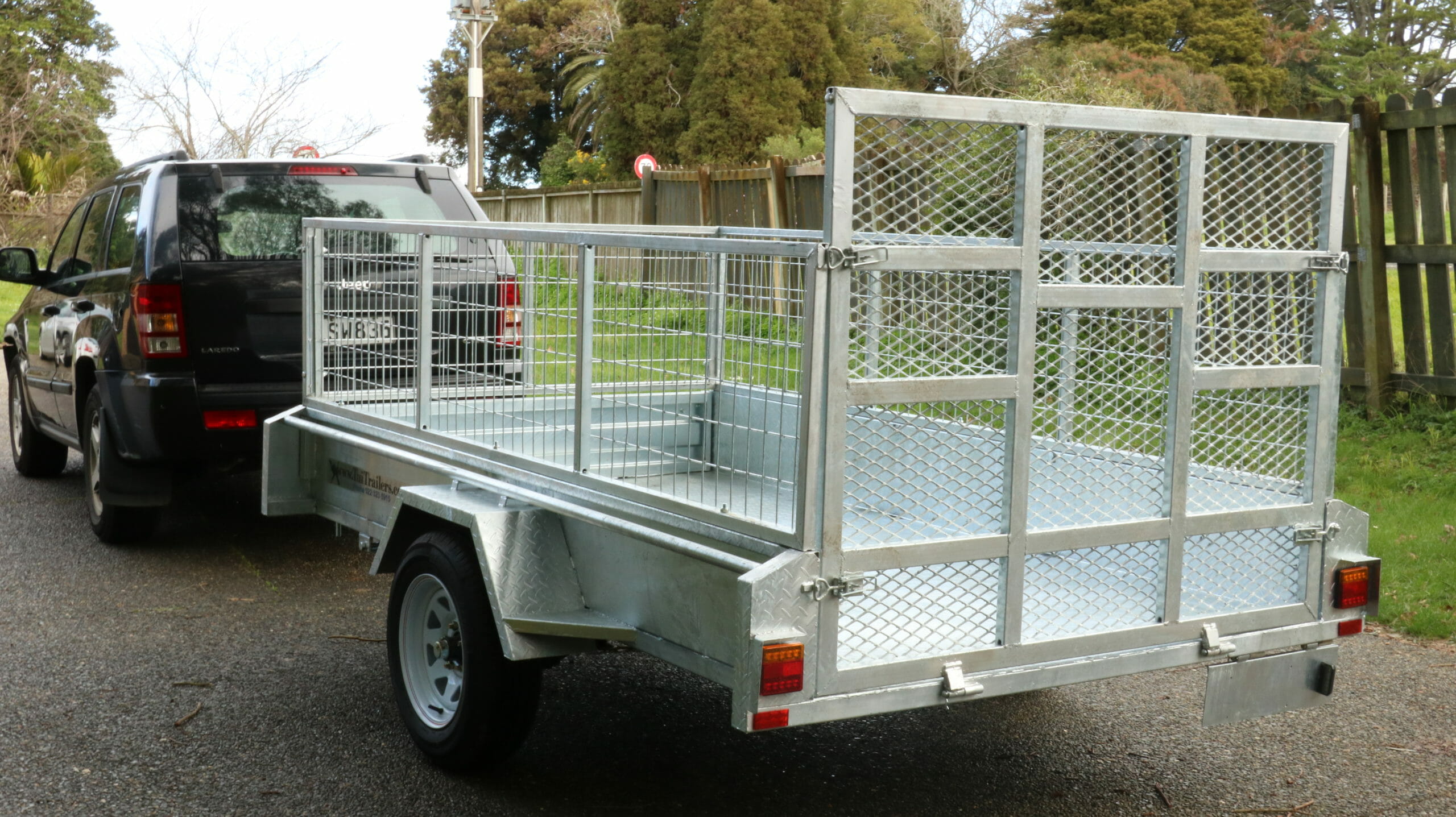

    Swing opening rear door, also removable. (Note: some of the photos show the ramp option, which is extra cost – please ask us).
  • Crate is easily removed if required, simple 6 bolts to remove.
  • Front and rear tail gates that can be easily removed.
  • Draw-bar: 75 x 50 x 2.75mm RHS with length 1360mm (long enough to put toolbox on, long draw bars also make reversing easier).

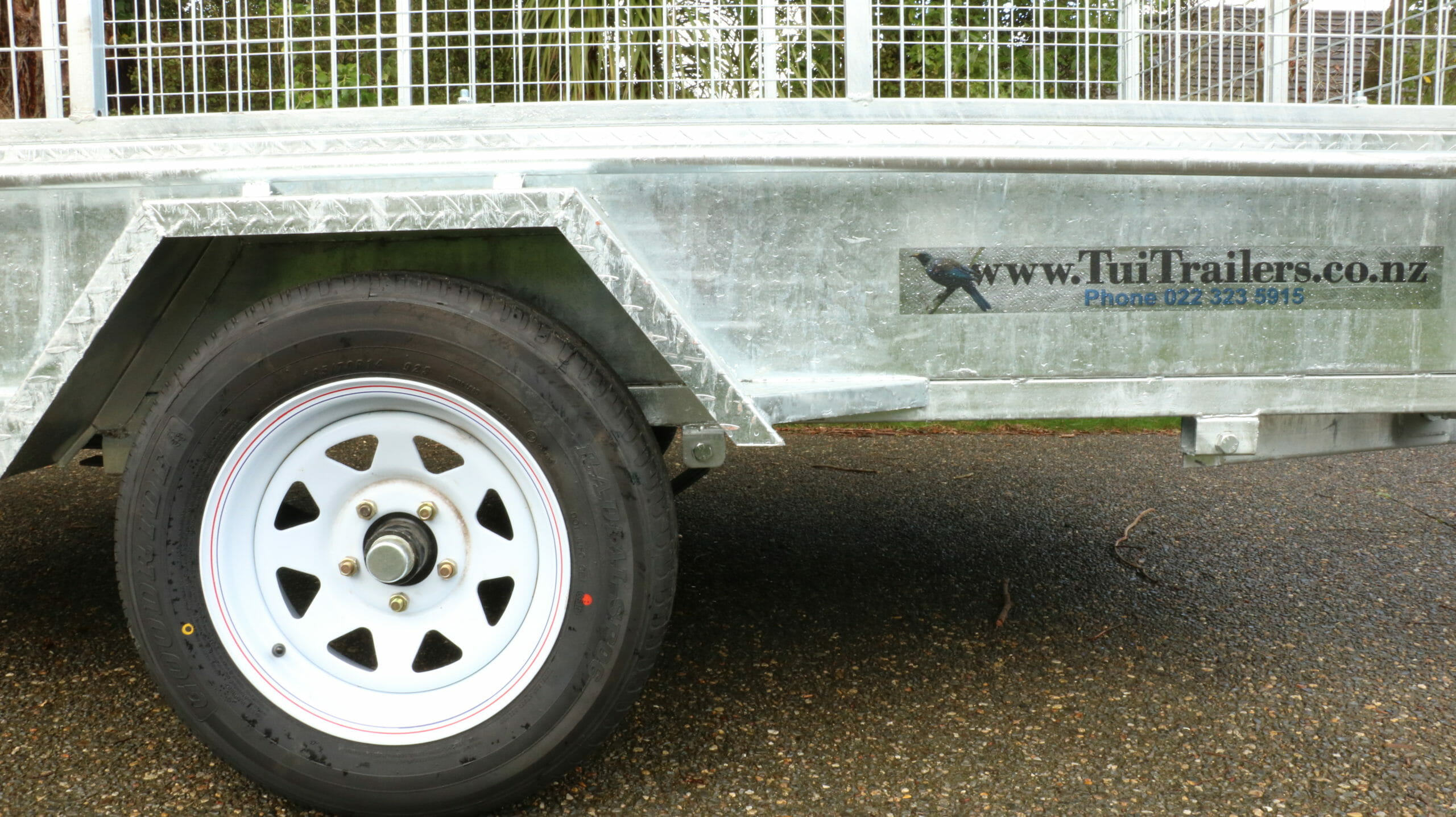

  • Wheels: 185/70R14 NEW TYRES and Galvanised rims. (Spare wheel and bracket optional extra) Wheels upgradeable to 14″ (see below)

…Plus all Standard Single Axle Trailer Features

  • All Tui Brand single axle trailers are tipper tilt trailers.
  • Draw-bar: 75 x 50 x 4 mm RHS (long enough to put toolbox on, long draw bars also make reversing easier).
  • Wheels: 165/70R13 NEW TYRES and Powder coated rims. (Spare wheel and bracket optional extra) Wheels upgradeable to 14″ (see below)
  • NZ 1 7/8″ Coupling & safety chain.

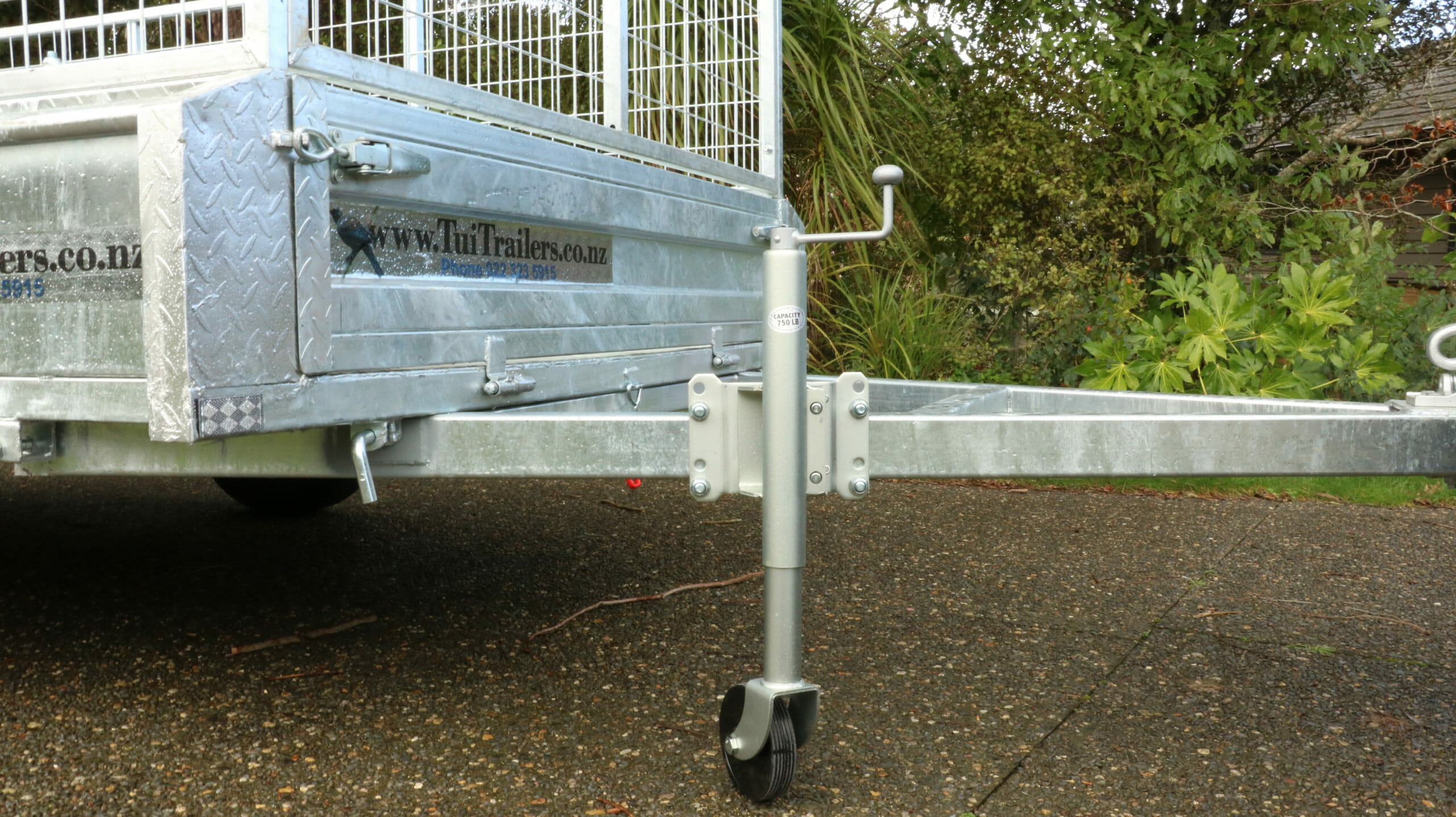

  • Jockey Wheel (Heavy Duty Folding).

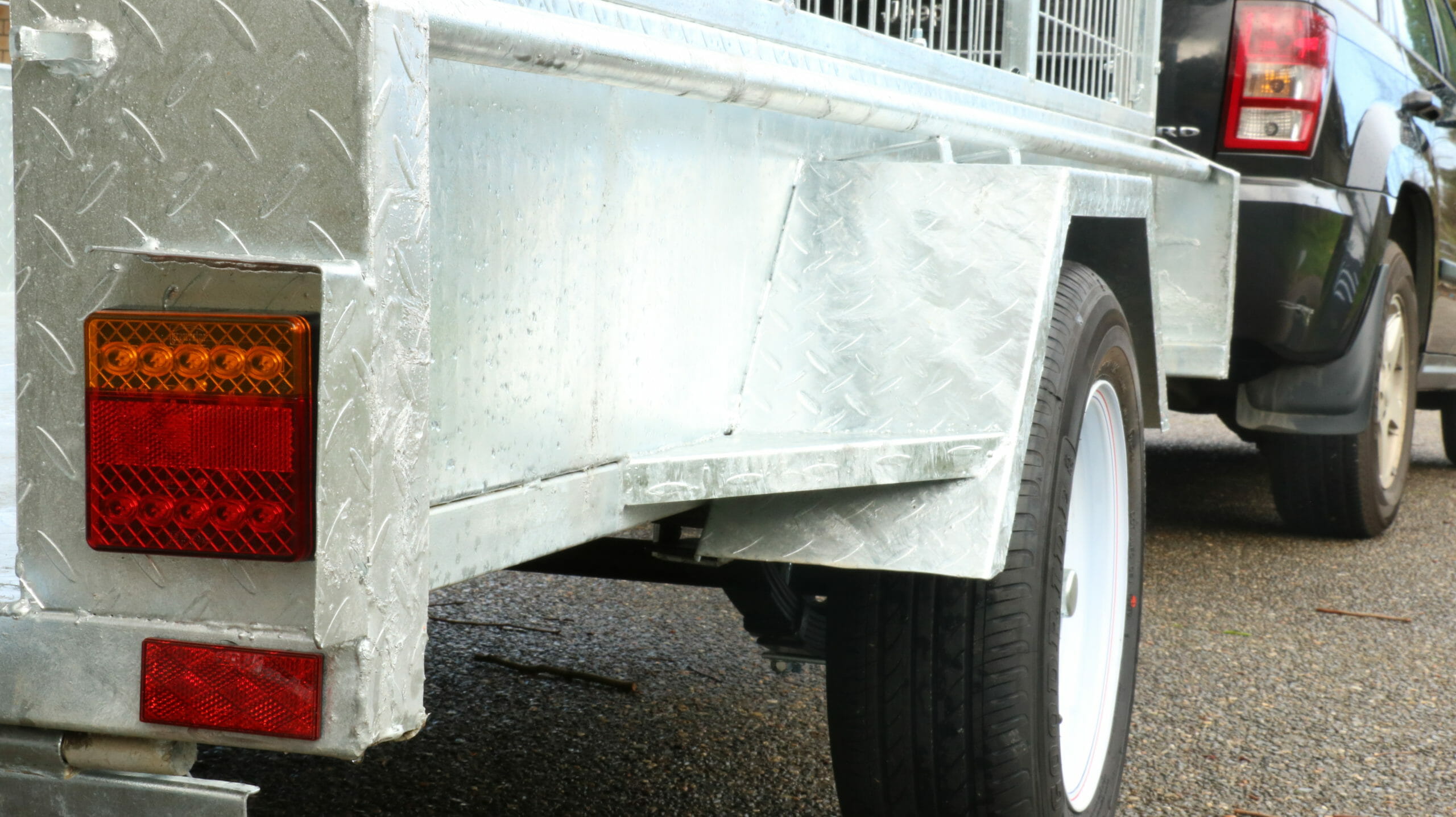

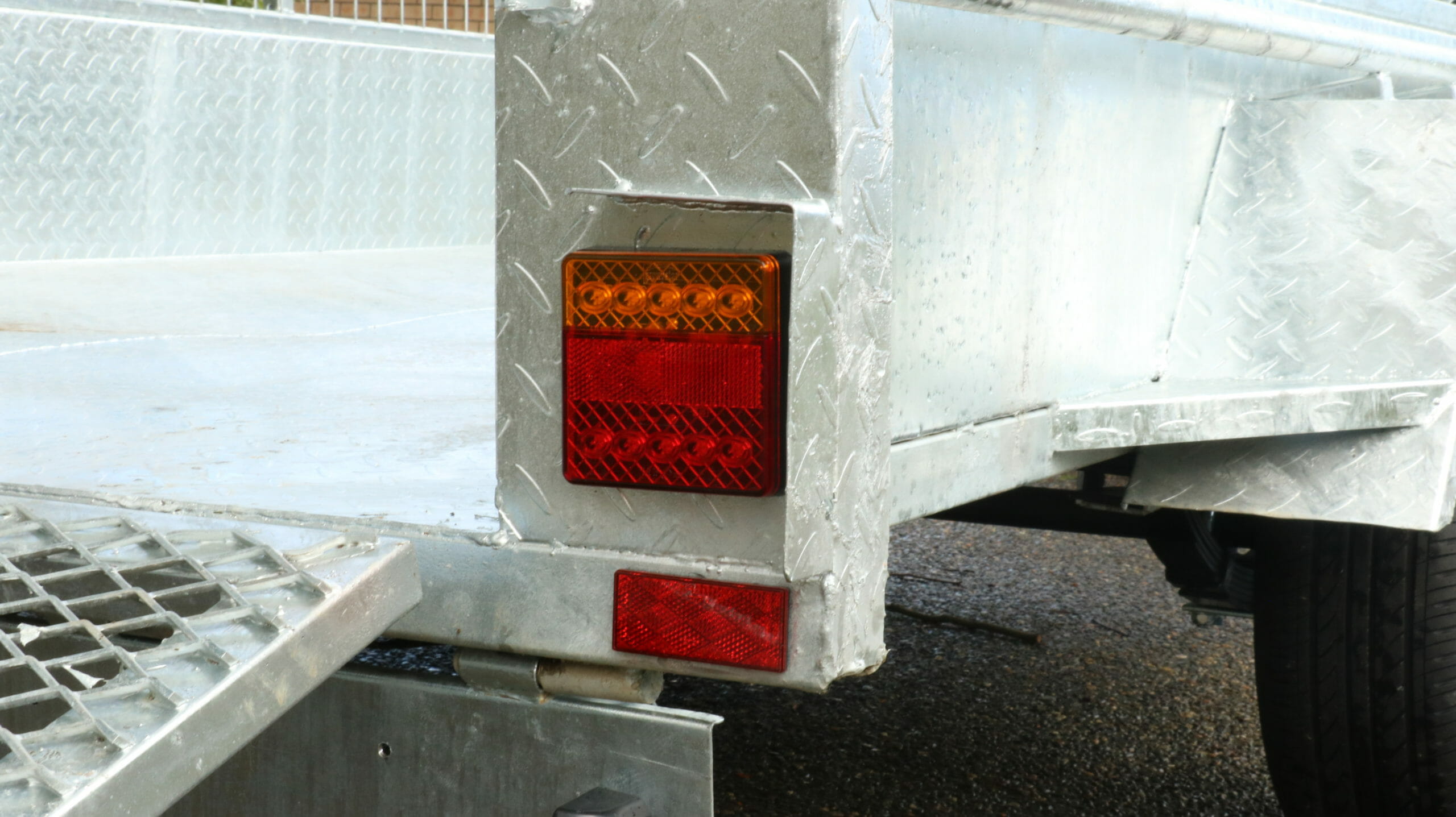

  • LED light set, fitted within protective metal frame for added protection.
  • NZ standard 7 pin flat plug.
  • Our 5 year structural warranty, see our warranty info.
  • Meets and exceeds NZ LTSA standards.

Optional extras:

  • On-road costs $160.00
  • Spare wheel and bracket  $180.00
  • Upgrade to 14″ Wheels $45.00 per wheel.
  • Selection of lockable aluminum tool boxes starting from $260.00
  • Hydraulic Brakes – please ask

Buying Direct From us $3350.00 Gst inclusive for fully assembled Tui Trailer
Some specs can be subject to change.
