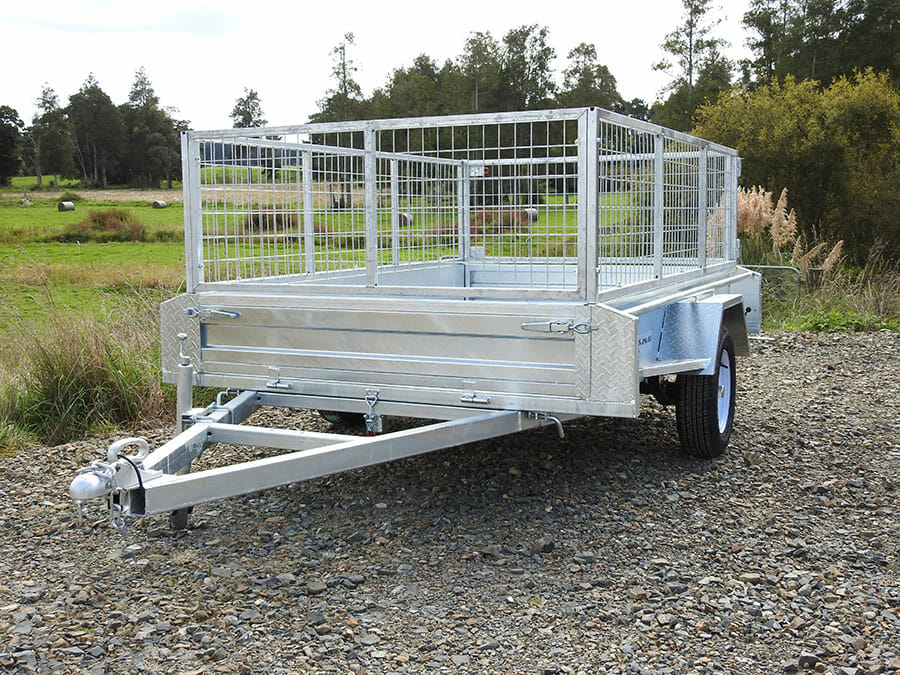

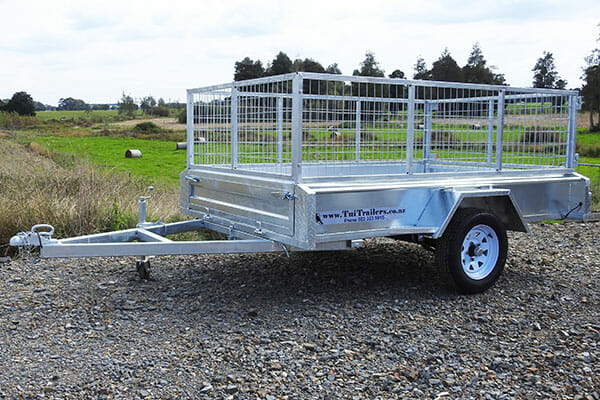

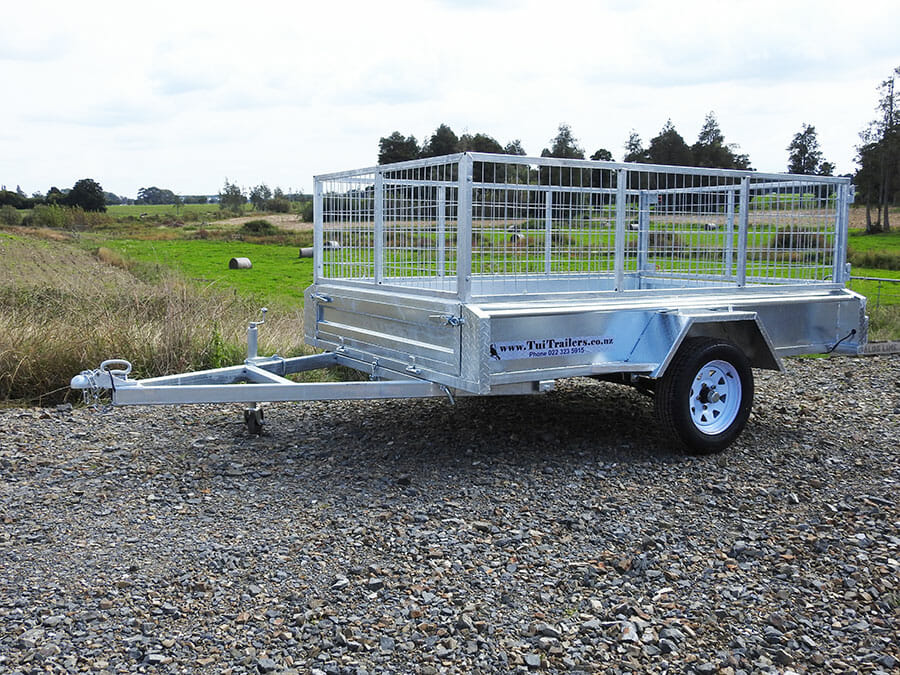

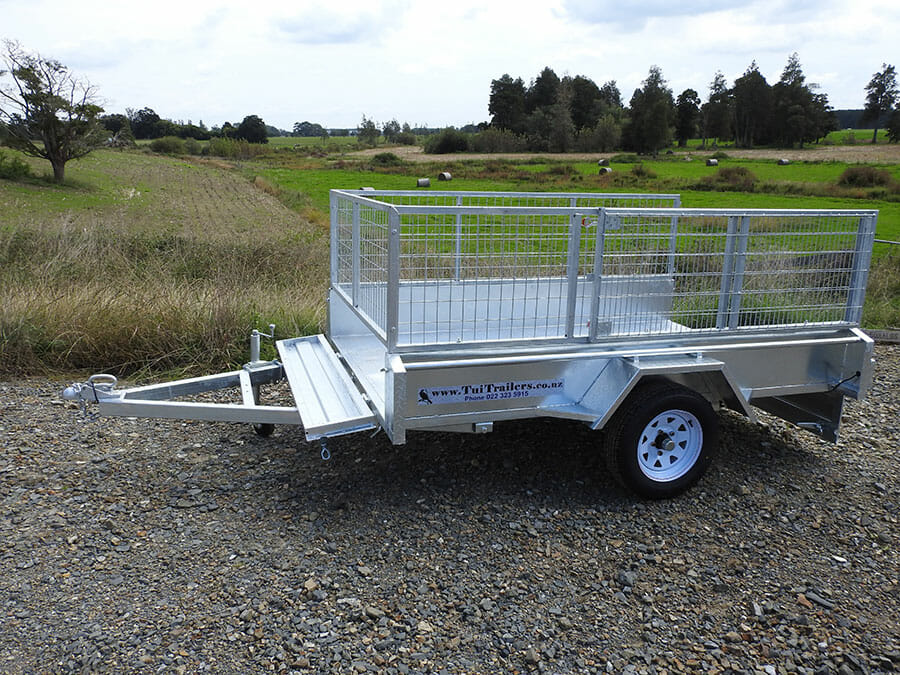

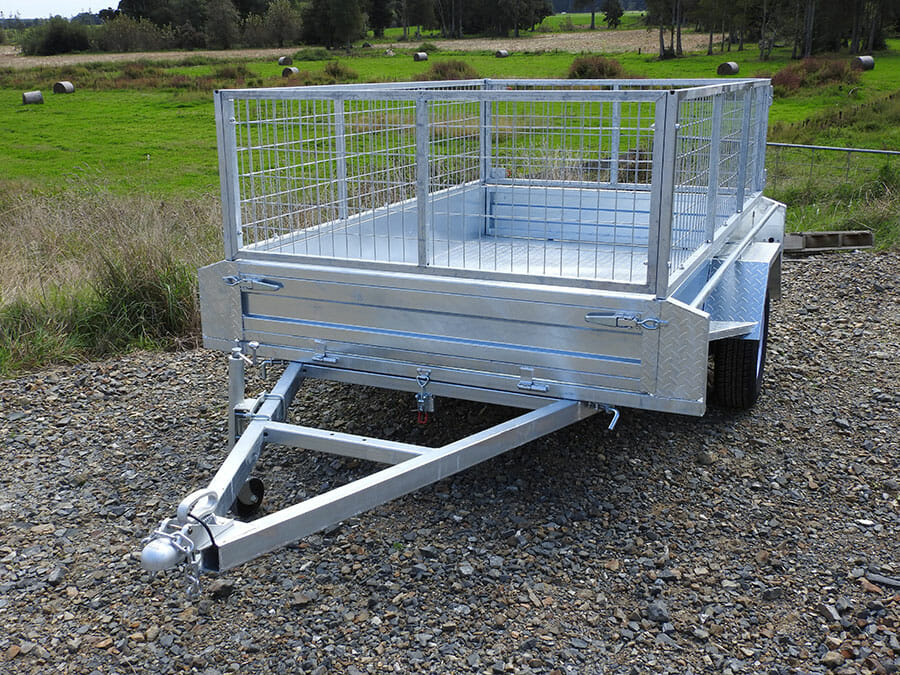

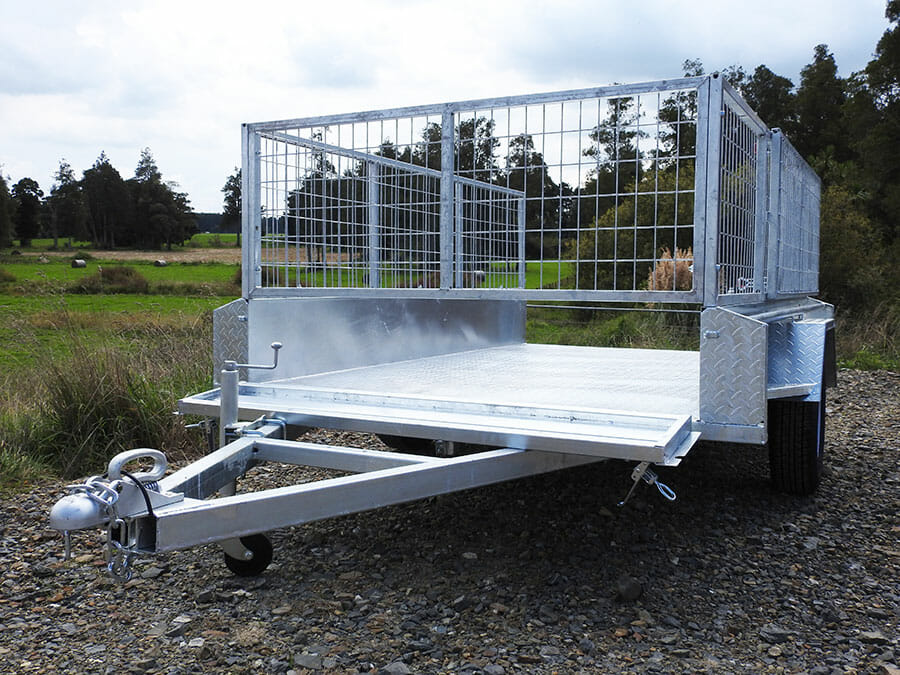

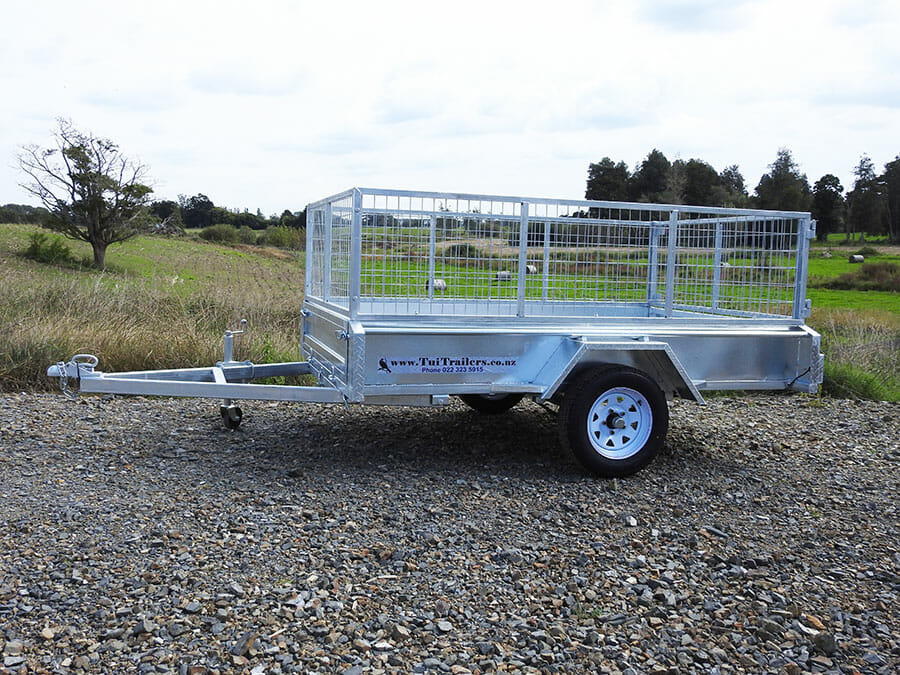

8 x 5 Super Heavy Duty Trailer with 600mm Cage

Are you wanting a super heavy duty trailer that can handle extra heavy and larger loads? This trailer, with its handy 600mm cage giving you more capacity than the standard trailer sides, could be the ideal choice.(Trailer sides being 300mm and the cage 600mm, giving a total height floor of trailer to top of cage 900mm).

This trailer continues to be a popular model in our range and is of fully welded construction with a welded checker plate floor for added strength and easy cleaning. We have incorporated our tipping tilting action with this trailer, as we have in all our single axle models. This feature has proven to be extremely popular, not needed every trip, but sure handy when you do need it.

The trailer comes with a jockey wheel as standard. This makes life easier when removing a loaded trailer. You also have the option to purchase the optional spare wheel and bracket.

As with our other models, our trailers have been designed and manufactured with the end user in mind. With our many years of experience in the trailer industry, we bring you a quality trailer you will be proud to own.

8 x 5 Super Heavy Duty with 600mm Cage Features

  • 8×5 Super heavy duty trailer.

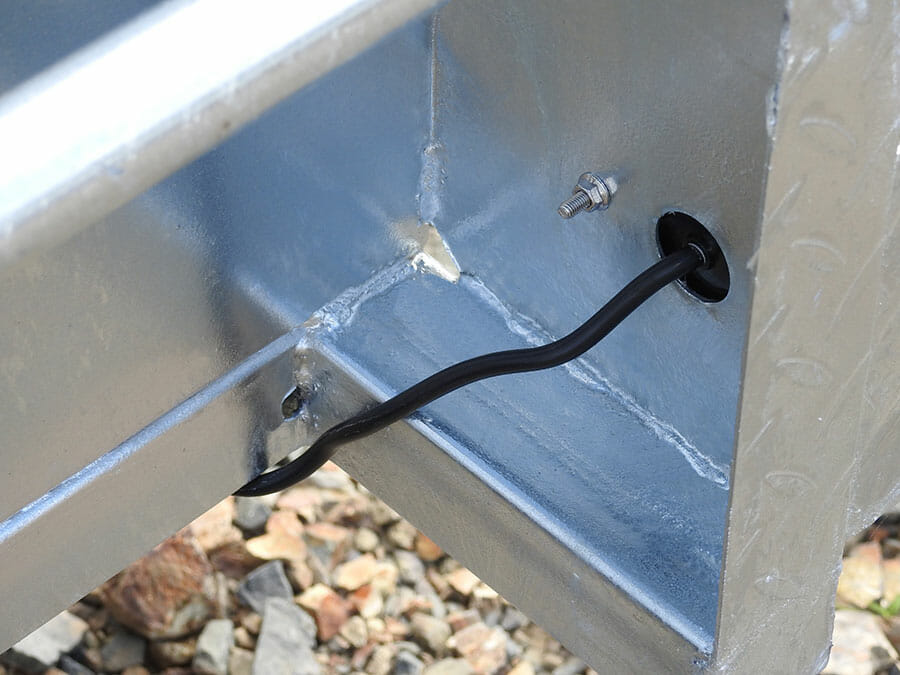

  • Hot dipped galvanized heavy gauge steel construction – fully welded (not bolted)

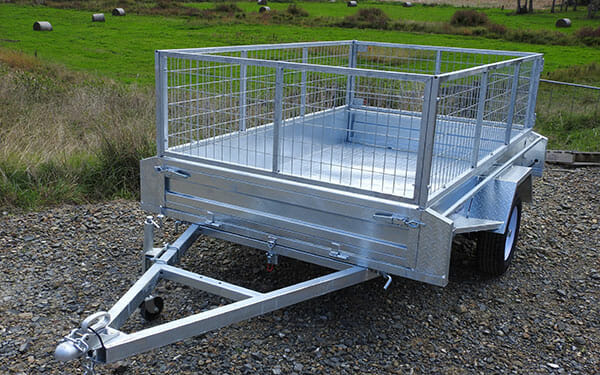

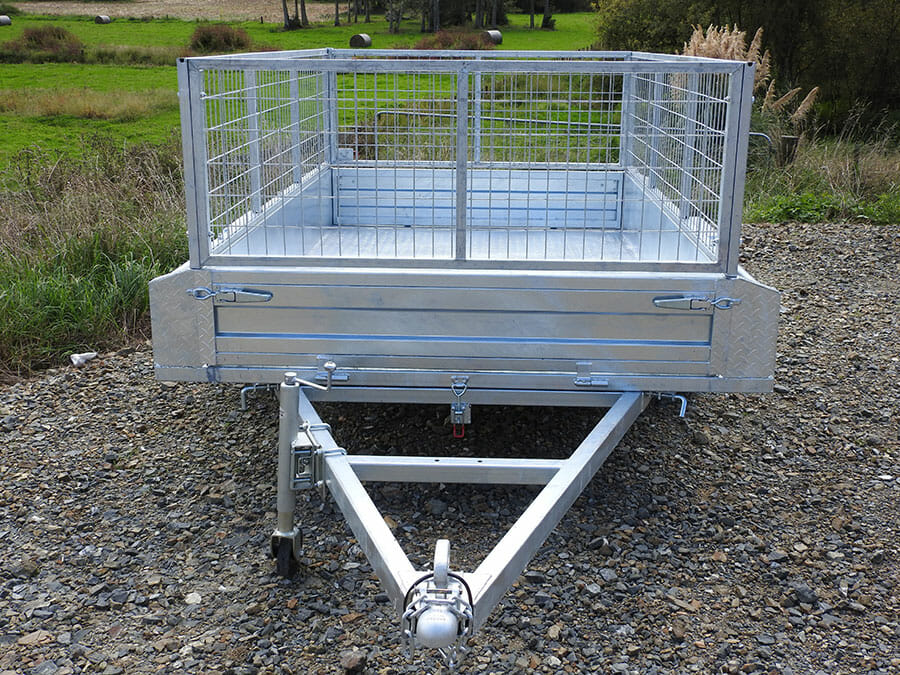

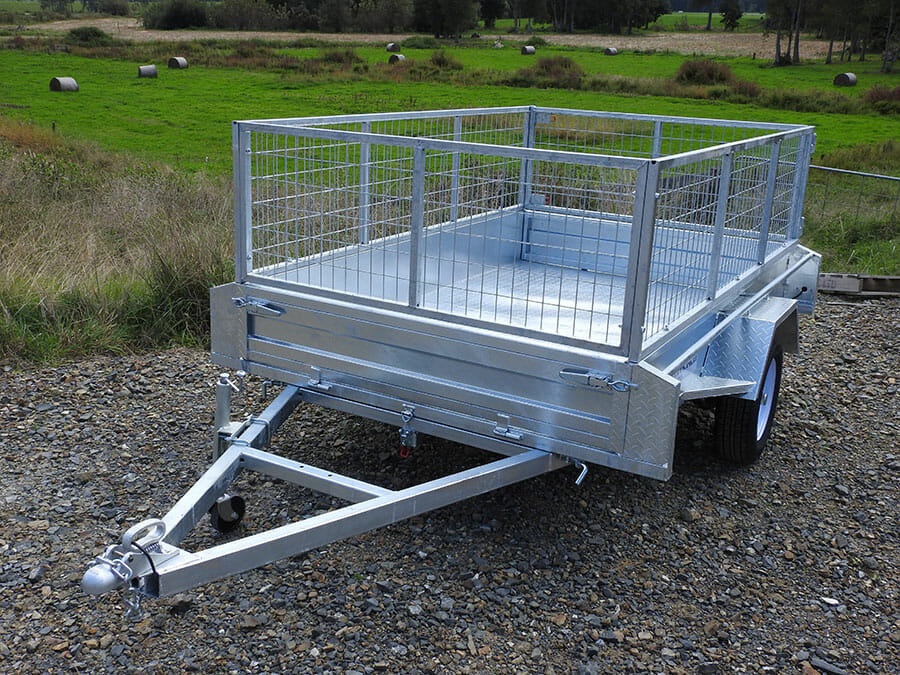

  • High quality galvanized Cage, 600mm high sides, total height 900mm
  • Crate is easily removed if required, simple 6 bolts to remove.

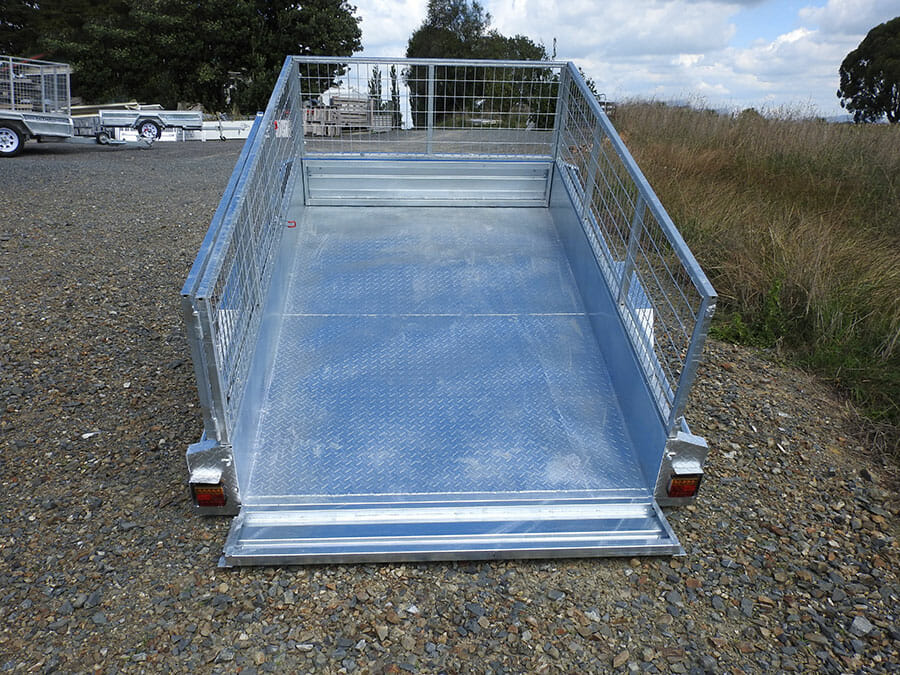

  • Swing opening rear door, also removable.

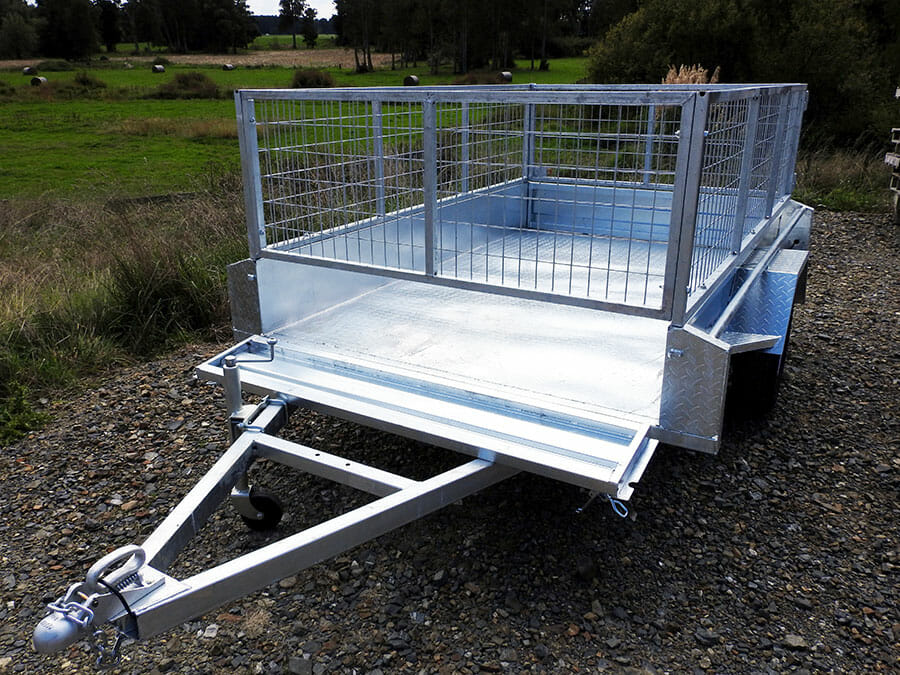

  • Front and rear tail gates that can be easily removed.

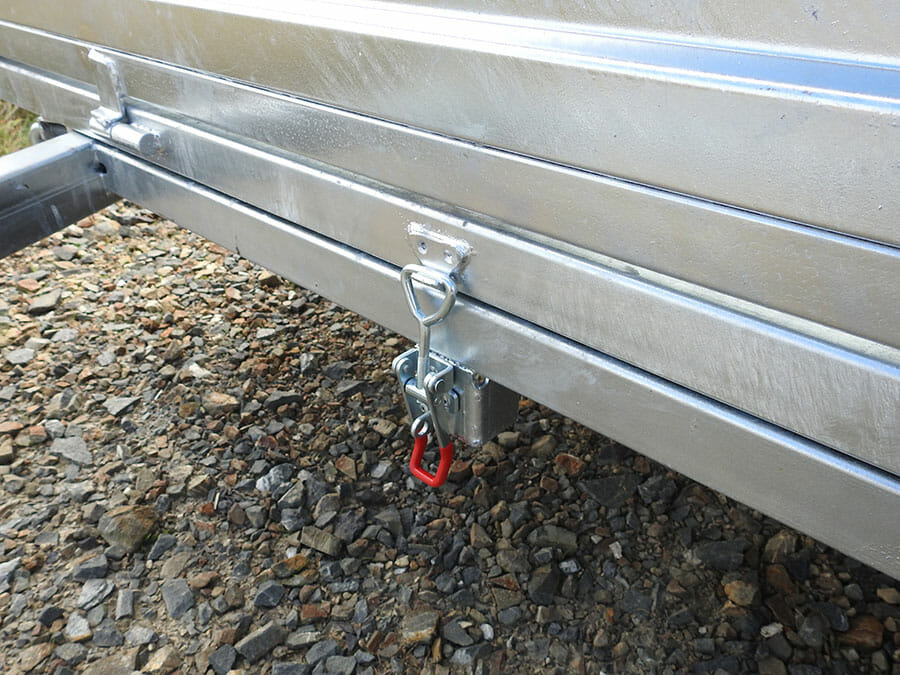

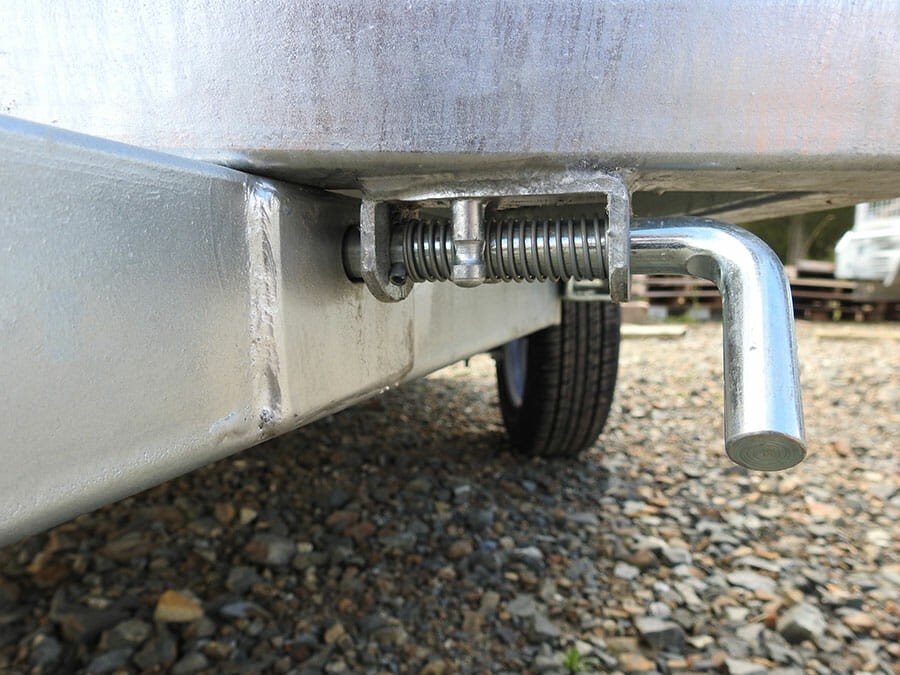

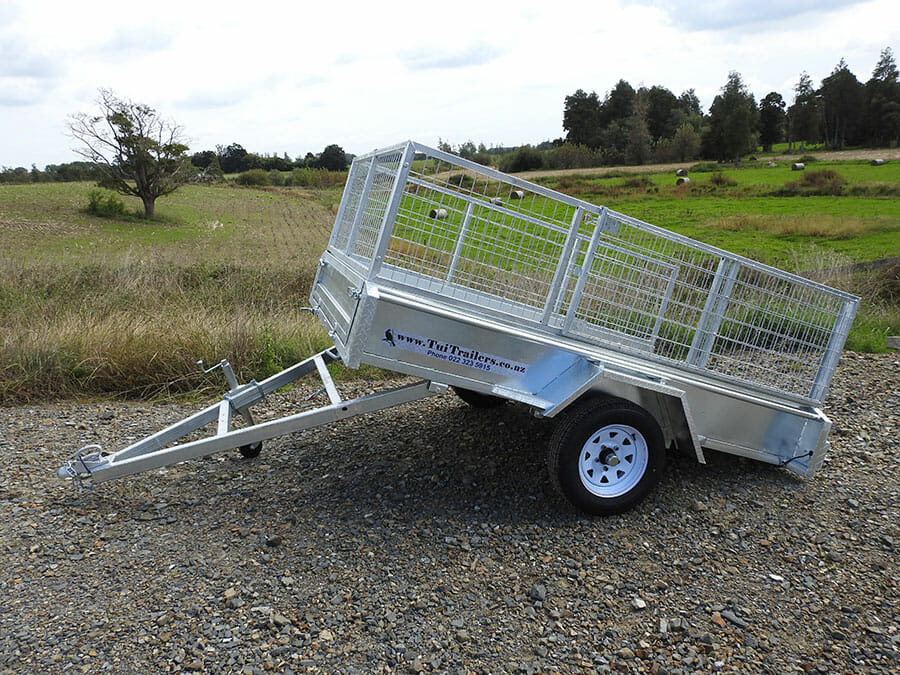

  • Tipper tilt trailer 3 secure fixings.

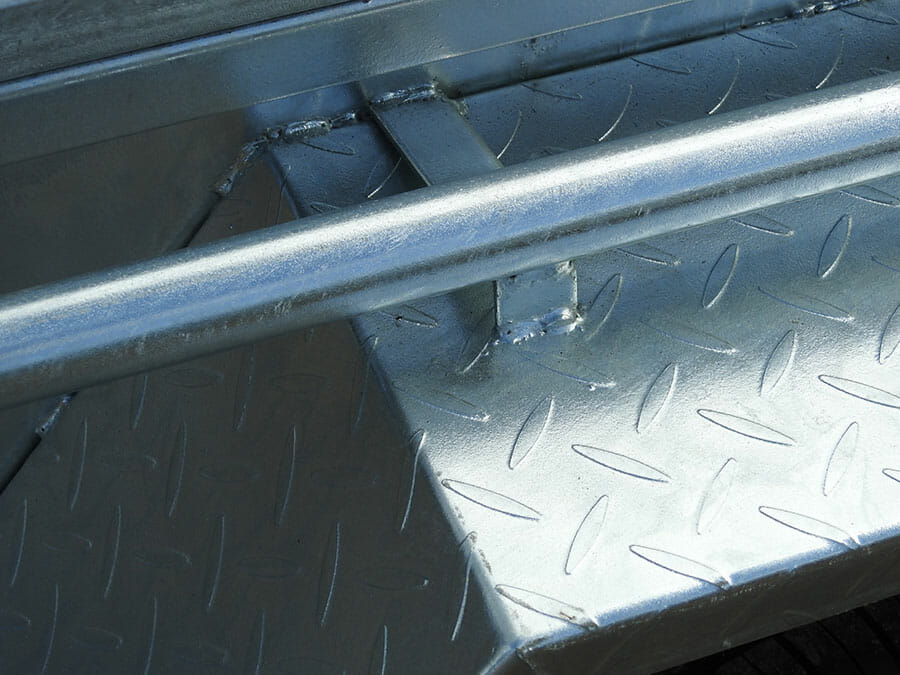

  • Full length side tie down rails, very secure.

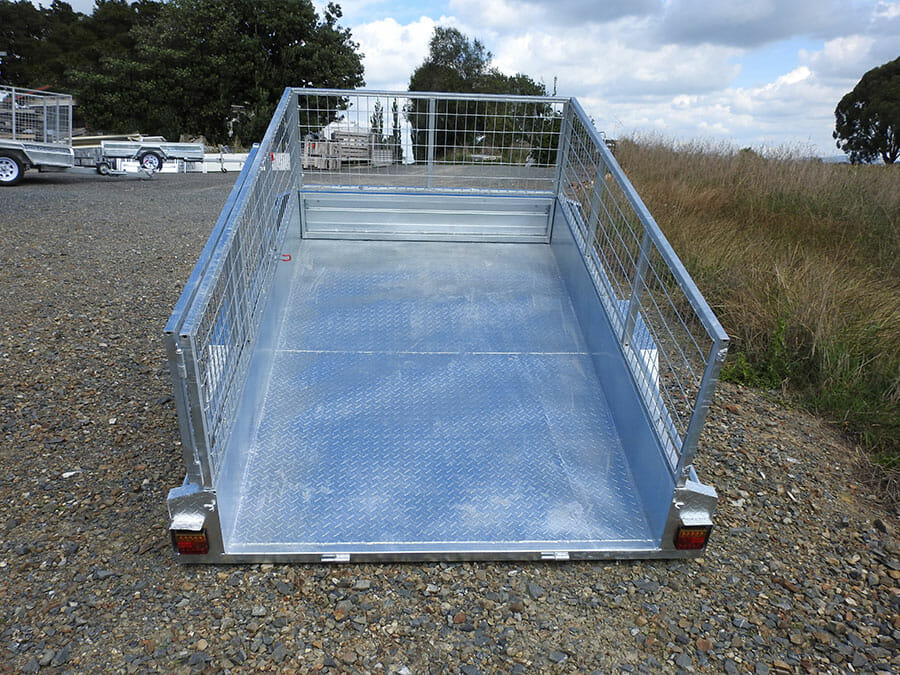

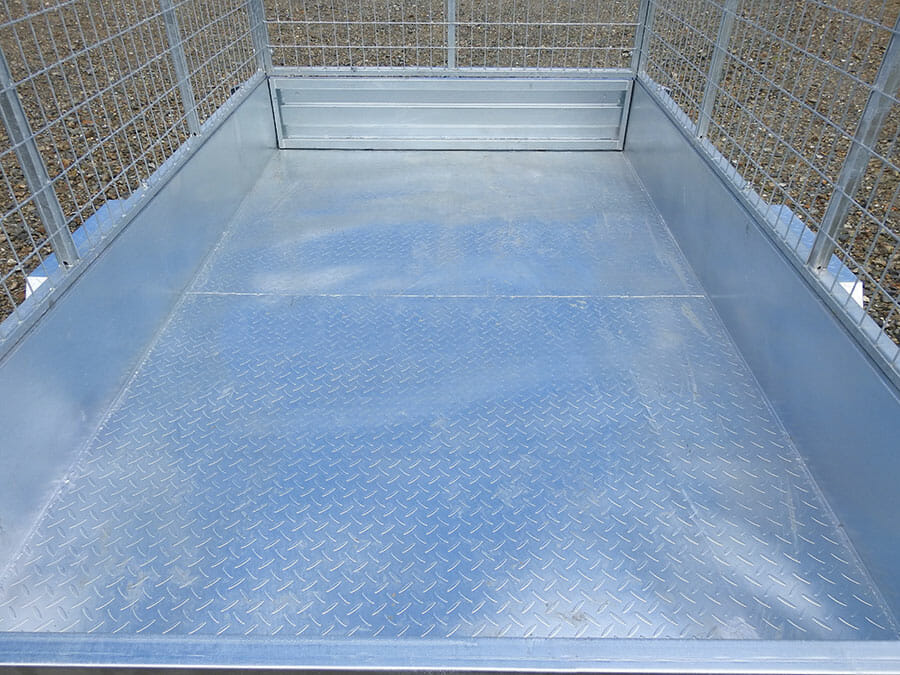

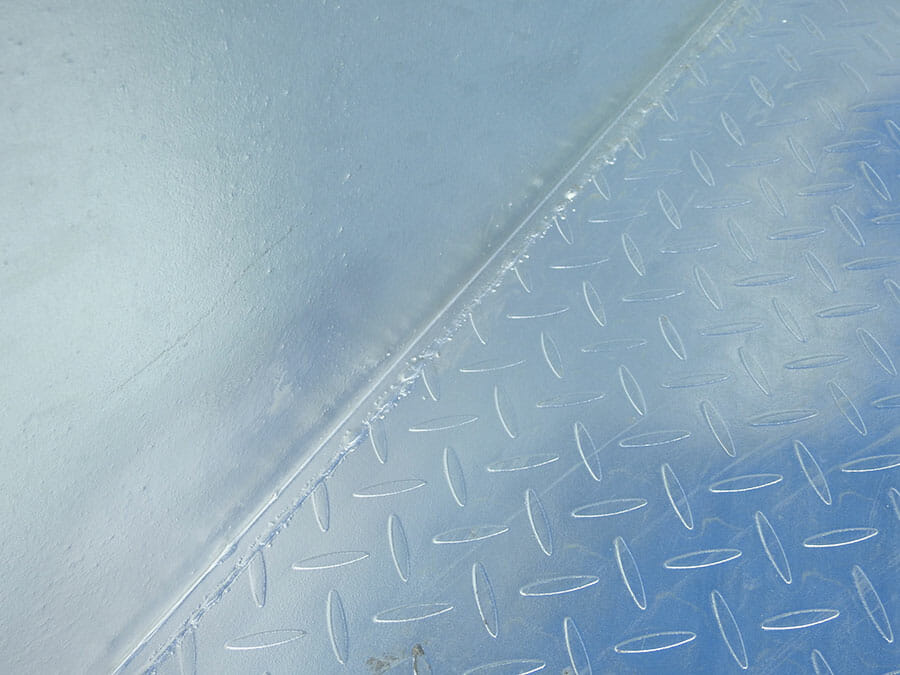

  • 2.75 mm fully welded checker plate floor for strength and easy cleaning.

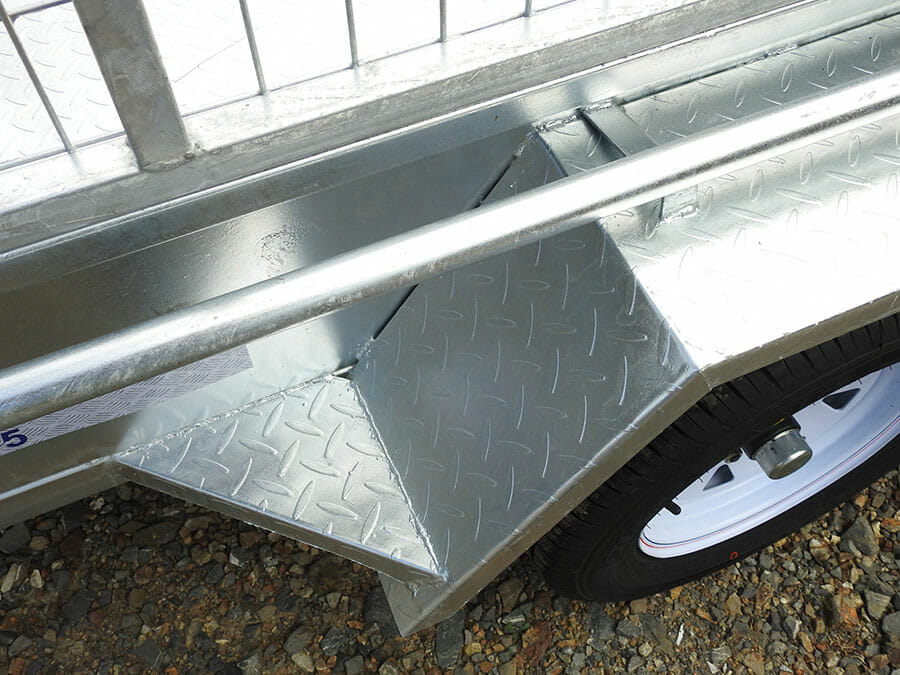

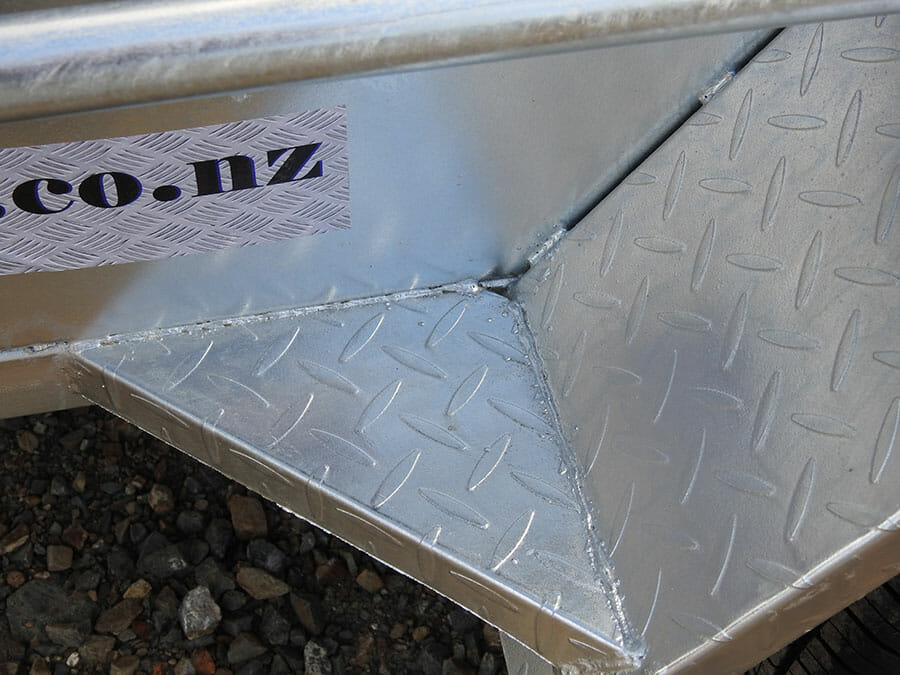

  • 2.75 mm Checker plate mudguards, strong enough to stand on.

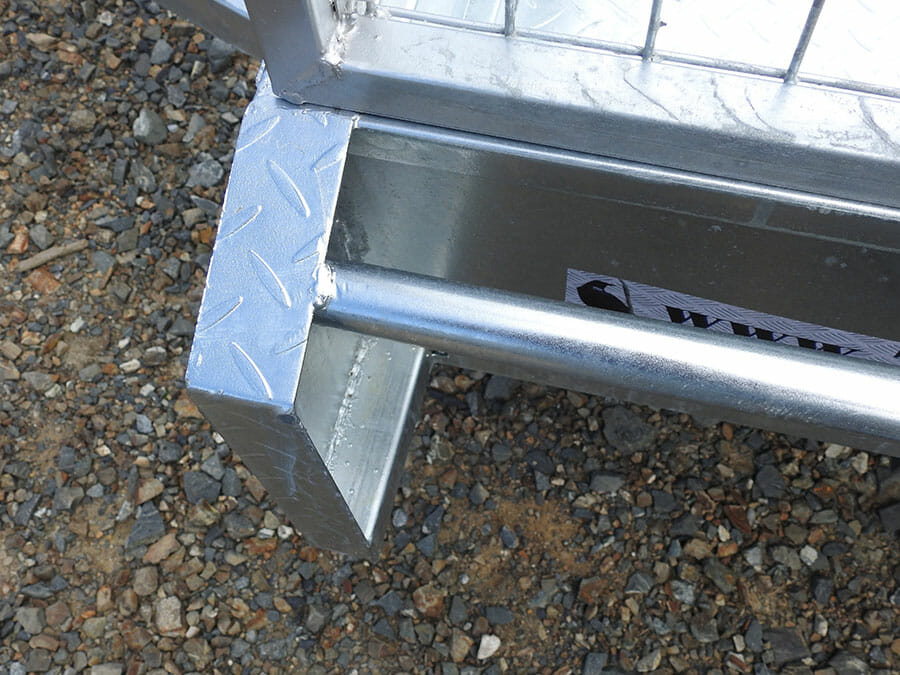

  • Strong triangle braces on mudguards, also work as foot steps.
  • Chassis and frame 50 x 50 x 2.5-2.75mm box section RHS.

…Plus all Standard Single Axle Trailer Features

  • All Tui Brand single axle trailers are tipper tilt trailers.
  • Draw-bar: 75 x 50 x 4 mm RHS (long enough to put toolbox on, long draw bars also make reversing easier).
  • Wheels: 165/70R13 NEW TYRES and Powder coated rims. (Spare wheel and bracket optional extra) Wheels upgradeable to 14″ (see below)
  • NZ 1 7/8″ Coupling & safety chain.
  • Jockey Wheel (Heavy Duty Folding).
  • LED light set, fitted within protective metal frame for added protection.
  • NZ standard 7 pin flat plug.
  • Our 5 year structural warranty, see our warranty info.
  • Meets and exceeds NZ LTSA standards.

Optional extras:

  • On-road costs $160.00
  • Spare wheel and bracket  $180.00
  • Upgrade to 14″ Wheels $45.00 per wheel.
  • Selection of lockable aluminum tool boxes starting from $260.00
  • Hydraulic Brakes – please ask

Buying Direct From us $2950.00 Gst inclusive for fully assembled Tui Trailer
Some specs can be subject to change.
