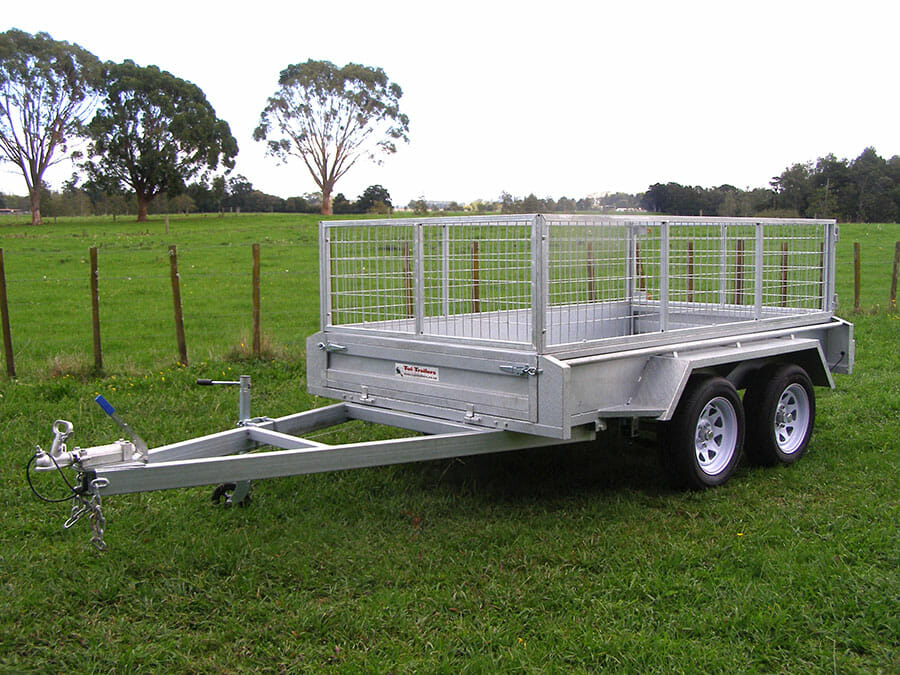

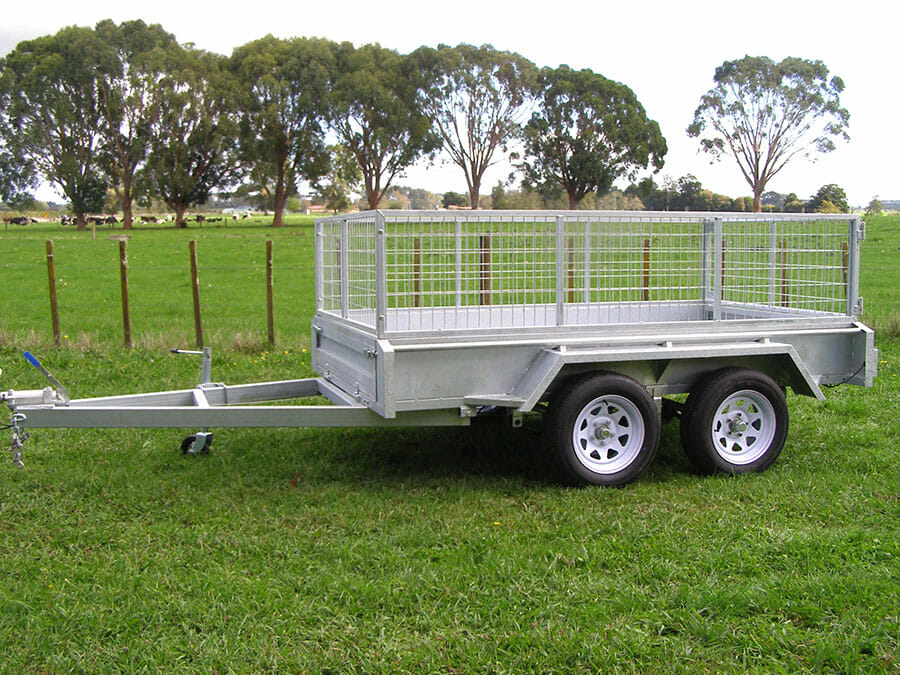

9 x 5 Super Heavy Duty Tandem Trailer with 600mm Cage

For the loads that you just want to save time tying down or the bigger loads where trailer sides would be handy, this 9×5 tandem trailer has an easily removable, 600mm high, heavy duty cage fitted with full opening door at the rear.

A solid set of axles gives the trailer superior carry strength and  the larger size box section draw bar, handles all your loads with ease and makes backing a breeze.

Our tandem trailer bodies have fully welded frames and seams and checker plate floor for added strength and easy cleaning.

The trailer comes with a heavy duty jockey wheel as standard which makes it easier to remove a loaded trailer from your vehicle. You have the choice of purchasing the optional spare wheel and bracket.

Our trailers have been designed and manufactured with the end user in mind. Tui trailers are built tough to last for many years of service and come with a 5 year warranty. If you want a trailer that is strong and robust, we believe you will be proud to own this one.

For 900mm cage and ramps, please ask us for current prices

9 x 5 Super Heavy Duty Tandem with 600mm Cage Features

  • 9 x 5 Super Heavy Duty Tandem

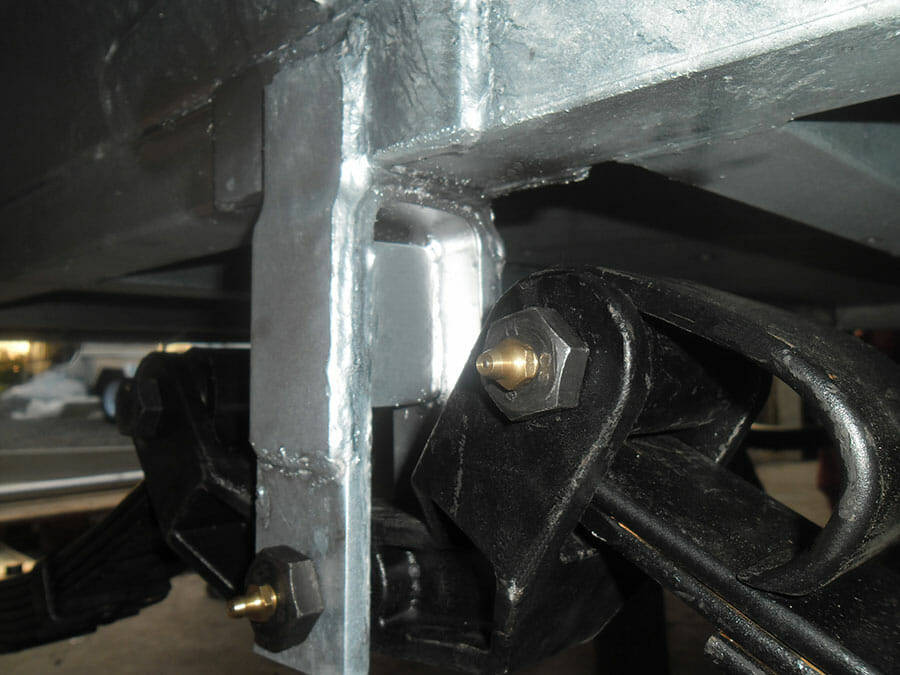

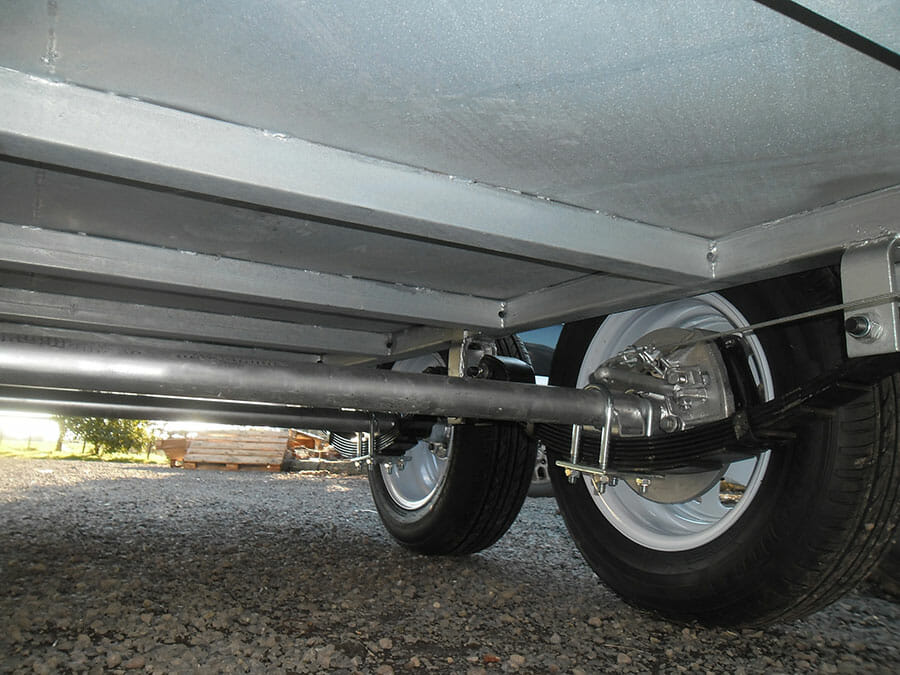

  • Tandem Axle, solid Steel 50mm dia axles, (not hollow tube), Disc Braked.
  • Fully Hot dipped galvanized steel construction.

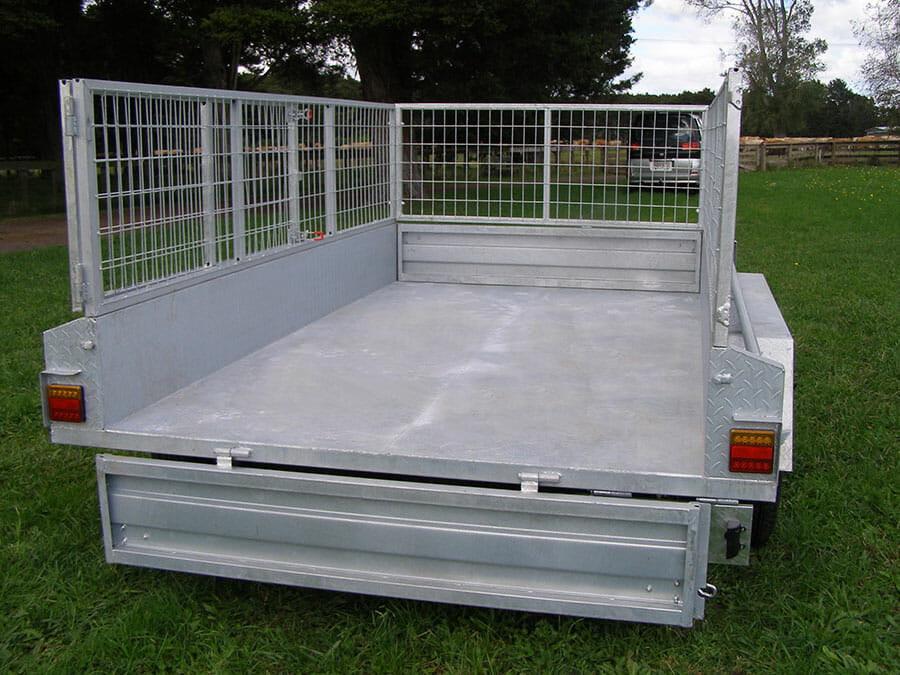

  • Floor 2.75mm checker plate, fully welded not riveted.
  • 2500kg GVM (Gross Vehicle Mass) – please check your vehicle’s ability to tow.
  • Hot dipped galvanized 300mm sides with full length side tie down rails.

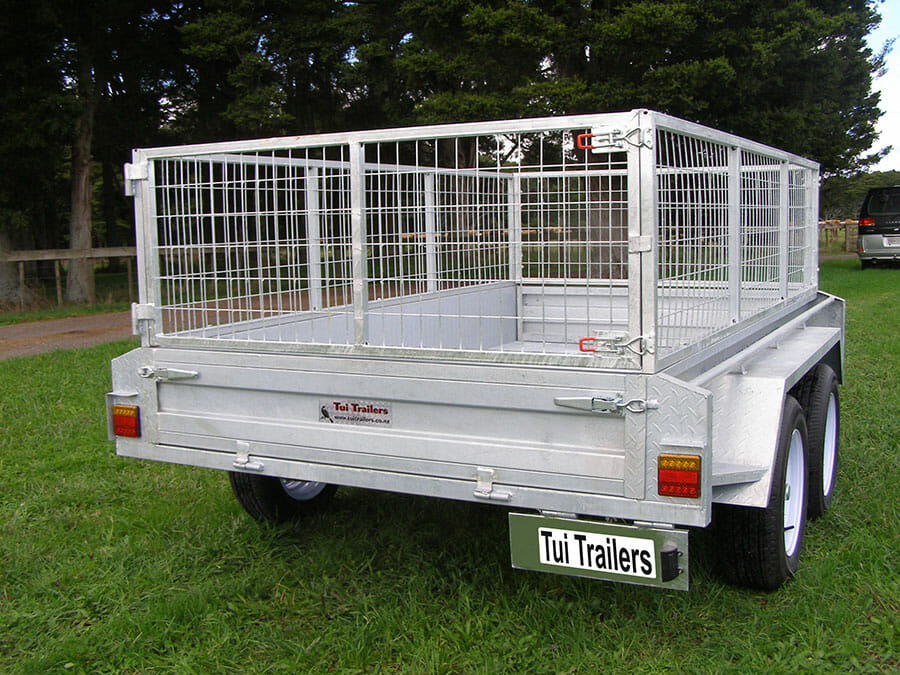

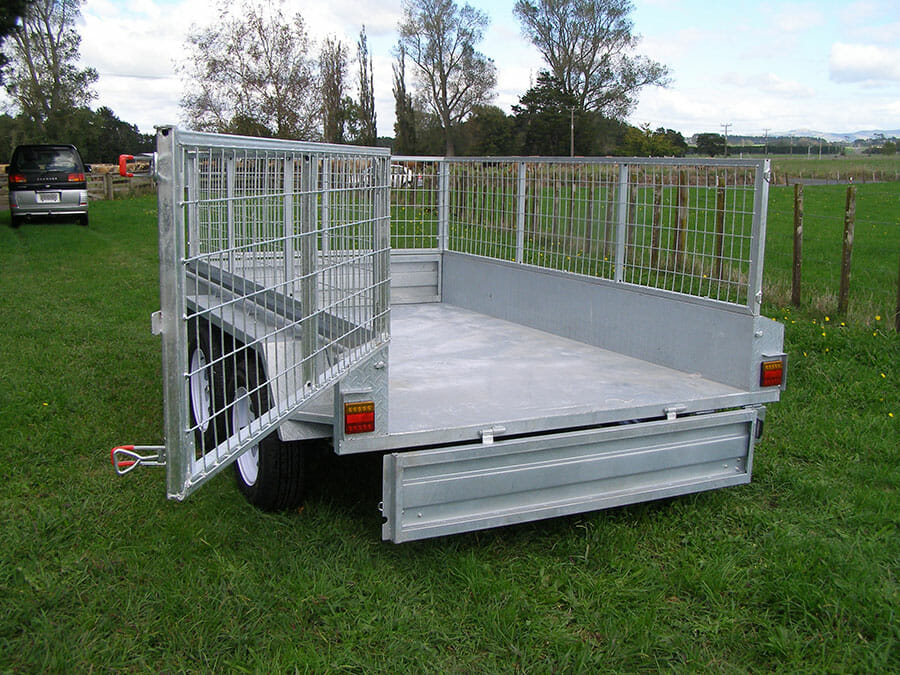

  • Strong 600mm galvanized cage with rear opening door.

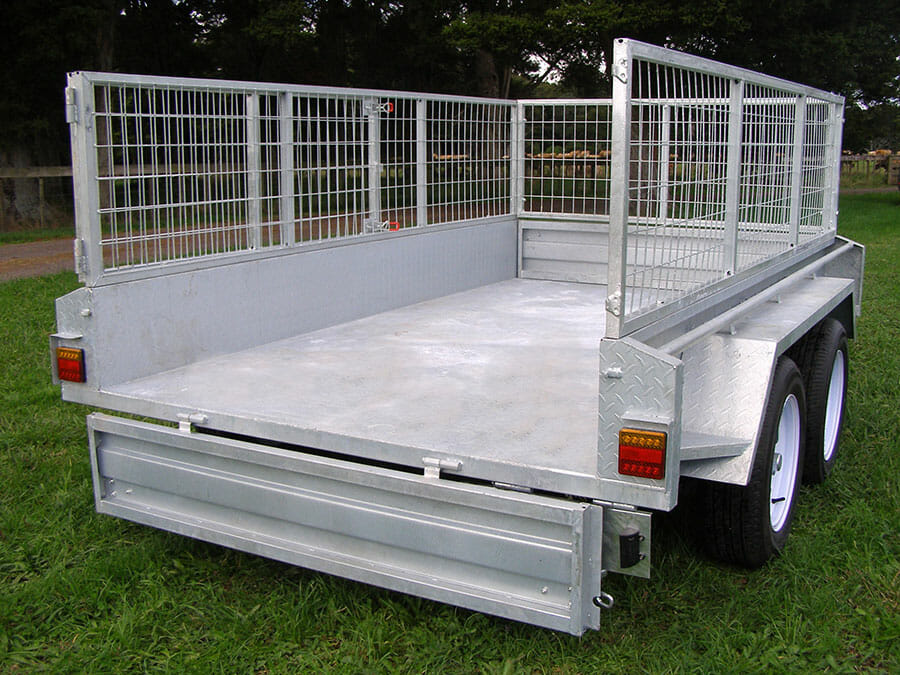

  • Front and rear opening tail gates that can be easily removed.

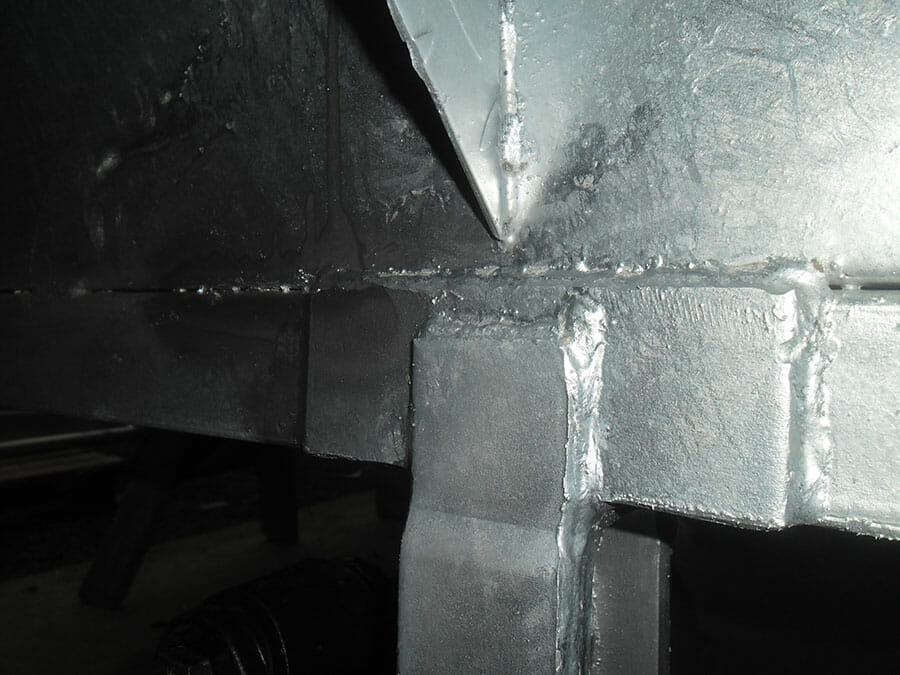

  • Frame and chassis fully welded and seamed, (not bolted)
  • Checker plate 2.75mm mudguards.
  • Triangle braces on mudguards, with foot steps.
  • Chassis: 50 x 50 x 4mm and frame 50 x 50 3mm RHS. Chassis with cross-members spaced at 400mm.

…Plus all Standard Tandem Axle Trailer Features

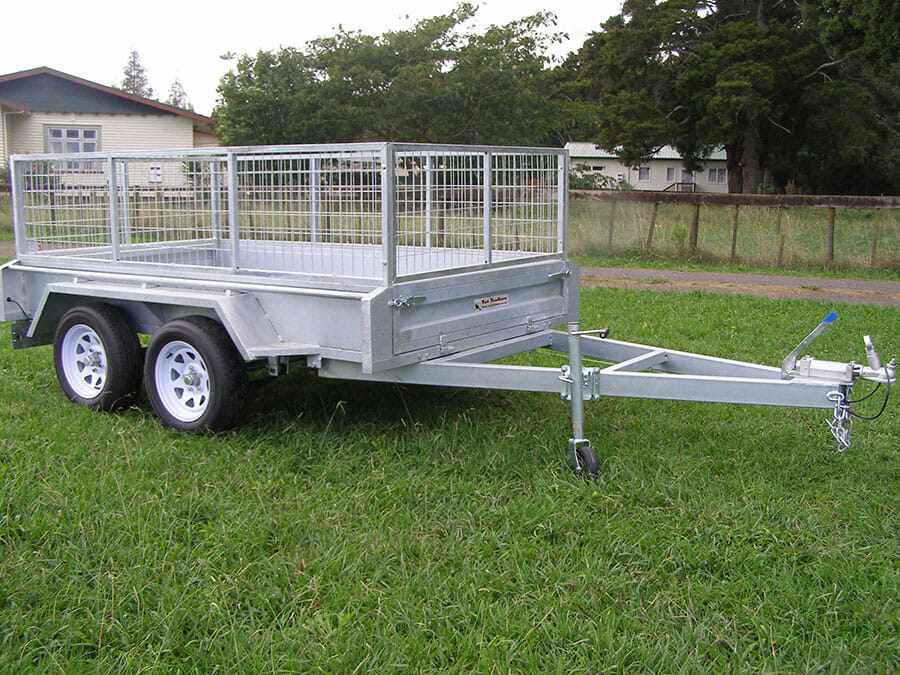

  • Draw-bar: 100 x 50 x 4 mm RHS (long enough to put toolbox on, long draw bars also make reversing easier).
  • Wheels: 185R14LT NEW TYRES and Powder coated rims. (Spare wheel and bracket optional extra)
  • NZ 1 7/8″ Coupling & safety chains.
  • Jockey Wheel (Extra Heavy Duty Folding).
  • LED light set, fitted within protective metal frame for added protection.
  • NZ standard 7 pin flat plug.
  • Our 5 year structural warranty, see our warranty info.
  • Meets and exceeds NZ LTSA standards.

Optional extras:

  • On-road costs $160.00
  • Spare 14 Inch LC wheel and bracket  $240.00
  • Selection of lockable aluminum tool boxes starting from $260.00.

Buying Direct From us $4895.00 Gst inclusive for fully assembled Tui Trailer
Some specs can be subject to change.
